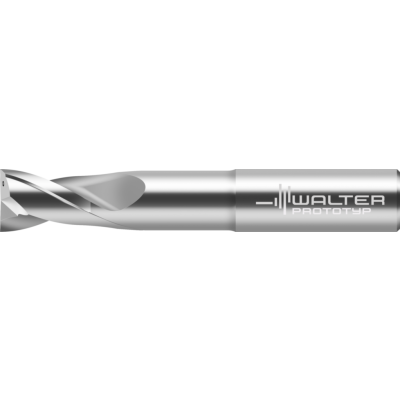

Solid carbide shoulder/slot milling cutters

MD266-20.0A2LC-WJ30UU NEW 2021

EAN-code: 4042446317119
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-slot-milling-Icon
D-M-Z2-Icon M-Spiralw-30-Icon M-Zentrumsschneide-Icon Recon-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 399,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MD266 A 2 C IC D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
25 mm
Corner chamfer width
l11
0,15 mm
Cutting edge diameter
Dc
20 mm
Shank diameter
d1
20 mm
Body diameter
d2
19 mm
Useable length
l3
73 mm
Overall length
l1
125 mm
Functional length
l4
74 mm
Tool designation
Designation
MD266-20.0A2LC-WJ30UU
Number of teeth
Z
2
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
