Solid carbide shoulder/slot milling cutters

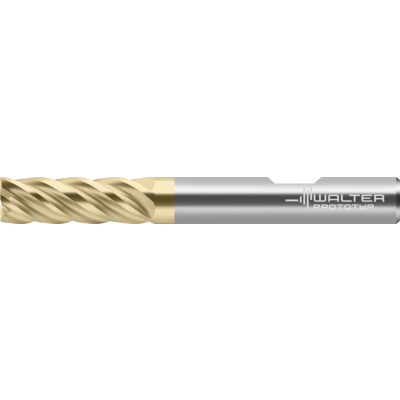

MD340-20.0W5L100J-WK40TP NEW 2022

EAN-code: 4063464219612
M-dynamic-milling-Icon M-helical-interpolation-Icon M-pocket-milling-Icon M-shoulder-milling-wall-Icon
D-M-Z5-Icon M-55HRC-Icon M-ohneZentrums-Icon M-Spiralw-38-Icon Recon-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 448,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MD340-W-5-L-R-J-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
60 mm
Cutting edge diameter
Dc
20 mm
Connection diameter
d1
20
Overall length
l1
125 mm
Functional length
l4
75 mm
Tool designation
Designation
MD340-20.0W5L100J-WK40TP
Corner radius
r
1 mm
Number of teeth
Z
5
Compatible products
Adaptors
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB044-H-P-01
AB044-H
DIN 69893-1 A Weldon adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB044-J-P-01
AB044-J
MAS-BT JIS B 6339 Weldon adaptor
Show variations
AB044-S-P-01
AB044-S
DIN 69871 AD/B Weldon adaptor
Show variations
W-A-391-20-CAPTO-P-01
AB044-C
Weldon shank adaptor
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
