Products Cutting tools Milling End mills Shoulder/slot milling cutters Roughing/finishing cutters Milling cutters with corner radius Supreme MD344 Supreme, with corner rad., z=4 Solid carbide plunge milling cutter MD344 4063464228980

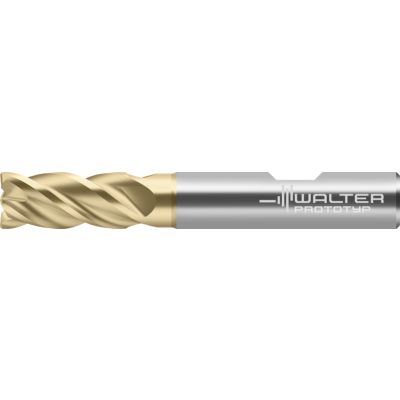

Solid carbide plunge milling cutter

MD344-10.0W4B050C-WK40TP NEW 2022

EAN-code: 4063464228980
M-helical-interpolation-Icon M-plunging-closed-Icon M-plunging-open-Icon M-ramping-Icon
D-M-Z4-Icon M-55HRC-Icon M-Spiralw-38-Icon M-Zentrumsschneide-Icon Recon-Icon
Long reach
P
M
K
N
S
H
O
VAT 0% 123,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-MD344-W-4-B-R-C-D-01
Enlarge
Description Symbol Value
Useable length
l3
3 mm
Radius
r
0,5 mm
Cutting edge length
Lc
22 mm
Cutting edge diameter
Dc
10 mm
Connection diameter
d1
1 mm
Body diameter
d2
9,5 mm
Overall length
l1
72 mm
Projection length
l4
32 mm
Tool designation
Designation
MD344-10.0W4B050C-WK40TP
Number of teeth
Z
4
