Products Cutting tools Milling Milling tools Circle segment milling cutters MD839 Supreme 4042446309008

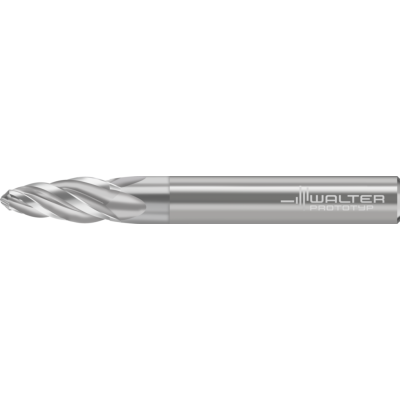

Solid carbide circle segment milling cutters

MD839-16A4P40100-WJ30RA NEW 2020

EAN-code: 4042446309008
M-copy-milling-4-Icon
D-M-Z4-Icon M-Spiralw-30-Icon M-Zentrumsschneide-Icon
Tangential
P
M
K
N
S
H
O
VAT 0% 385,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
P MR MD839 A P R D 01
Enlarge
Description Symbol Value
Cutting edge length
Lc
31,42 mm
Shank diameter
d1
16 mm
Maximum cutting diameter
Da
16 mm
Overall length
l1
115 mm
Tool designation
Designation
MD839-16A4P40100-WJ30RA
Effective radius
Rw
100 mm
Radius
r
4 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
