Products Cutting tools Turning Grooving and cutting Internal grooving Modular MSS-holder-90° 2,5xD, left MSS-I32L90-2,5D-N

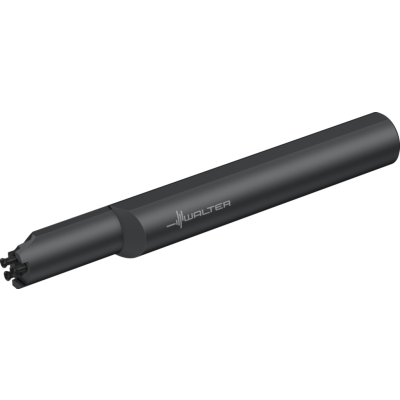

Boring bar – modular

MSS-I32L90-2,5D-N

EAN-code: 0574389936
T-In-Grooving-Icon T-In-Turning-Icon
T-WSP-GX-E-Icon T-WSP-GX-F-Icon
Screw clamping
VAT 0% 357,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-MSS-INNEN-MOD-L-2,5D-90-D-01
Enlarge
Description Symbol Value
Connection diameter
d1
40 mm
Body length
l4
74,1 mm
Overall length
l1
299,6 mm
Tool designation
Designation
MSS-I32L90-2,5D-N
Module size
I32
Compatible products
Adaptors
Assembly parts
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
