Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape TN.. Approach angle 93° MTJN – Wedge-type clamping MTJNR 0202580913

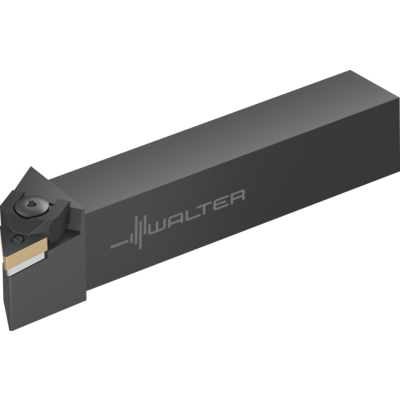

Shank tool – Wedge clamping

MTJNR2020K16

EAN-code: 0202580913
T-Ex-MTJN-Icon
T-WSP-TNMG-Icon T-WSP-TNMM-Icon
VAT 0% 100,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-MTJN-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
20 mm
Orthogonal rake angle
γ
-6 °
Shank height
h = h1
20 mm
Inclination angle
λs
-6 °
Overall length
l1
125 mm
Projection length
l4
30,8 mm
Tool designation
Designation
MTJNR2020K16
Insert seat size
16
Possible indexable inserts
Type
TN .. 1604 ..
Functional width
f
25 mm
Compatible products
Products
Adaptors
Assembly parts
TNMM HU3 TTG2 P 01
TNMM-HU3
Negative triangular 60°
Show variations
W T TNGA SMS CER CHAMP P 01
TNGA-SMS
Ceramic – Negative triangular 60°
Show variations
W-T-TNMG-MW5-TTG3-WIPER-P-01
TNMG-MW5
Negative triangular 60°
Show variations
W-T-TNMG-FW5-TTG3-WIPER-P-01
TNMG-FW5
Negative triangular 60°
Show variations
W-T-TNMG-MU5-TTG3-P-01
TNMG-MU5
Negative triangular 60°
Show variations
W-T-TNGA-TM-3-CBN-P-01
TNGA_TS-3
CBN – Negative triangular 60°
Show variations
W T TNMG NRS SILVER P 01
TNMG-NRS
Negative triangular 60°
Show variations
W-T-TNMG-RP5-TTG3-P-01
TNMG-RP5
Negative triangular 60°
Show variations
W T TNMG RM5 SILVER P 01
TNMG-RM5
Negative triangular 60°
Show variations
W T TNMG NMS SILVER P 01
TNMG-NMS
Negative triangular 60°
Show variations
TNMG-NM4-TTG2-P-01
TNMG-MM5
Negative triangular 60°
Show variations
W T TNMG MK5 SILVER P 01
TNMG-MK5
Negative triangular 60°
Show variations
W T TNMG FM5 SILVER P 01
TNMG-FM5
Negative triangular 60°
Show variations
W-T-TNMG-MP5-TTG3-P-01
TNMG-MP5
Negative triangular 60°
Show variations
W-T-TNMG-MS3-TTG3-P-01
TNMG-MS3
Negative triangular 60°
Show variations
W-T-TNMG-MP3-TTG3-P-01
TNMG-MP3
Negative triangular 60°
Show variations
W-T-TNMG-FP5-TTG3-P-01
TNMG-FP5
Negative triangular 60°
Show variations
W T TNMA RK7 SILVER P 01
TNMA-RK7
Negative triangular 60°
Show variations
W T TNMA RK5 SILVER P 01
TNMA-RK5
Negative triangular 60°
Show variations
W T TNGA GREY P 01
TNGA-C
Ceramic – Negative triangular 60°
Show variations
TNGA-TM-3-CBNBR-P-01
TNGA_TM-3
CBN – Negative triangular 60°
Show variations
W-A-C5-ASHR3-36123-20-P-02-1
ASH-AXIAL-3-CAPTO
Axial adaptor
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W A A2120 BT45 P 01
A2120-BMT-P
BMT adaptor – DIN 69880 shank tools
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
imageComingSoon big en US
Z_WEDGES
Wedge
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
imageComingSoon big en US
Z_PIN
Pins
Show variations
