Kiilauranpistopidin

NHV.15.IK25.2

EAN-code: NHV.15.IK25.2-duemmel

Kiilauranpistopidin DIN 138 sekä DIN 6885 urille.

Reiän minimihalkaisija 15mm, uran leveys 3-5mm

VAT 0% 172,55 €

You need to log in before purchasing. Request credentials here.

Ask about this product

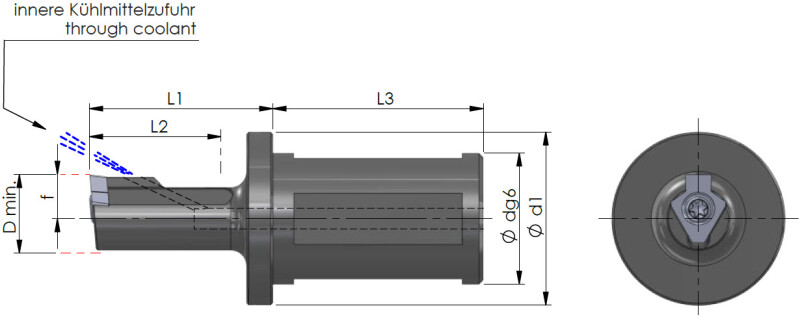

Description Symbol Value

Functional width

f

8,4 mm

Minimum hole diameter

D min

15,0 mm

Weight

WT

0,480,48 kg

Connection diameter

Ø d g6

25 mm

Length

L3

40 mm

Maks. ulkopituus

L1

50 mm

Length

L2

40 mm

Diameter

Ø d1

33 mm

Yhteensopivat terät

NV15.
