NHV.22-30

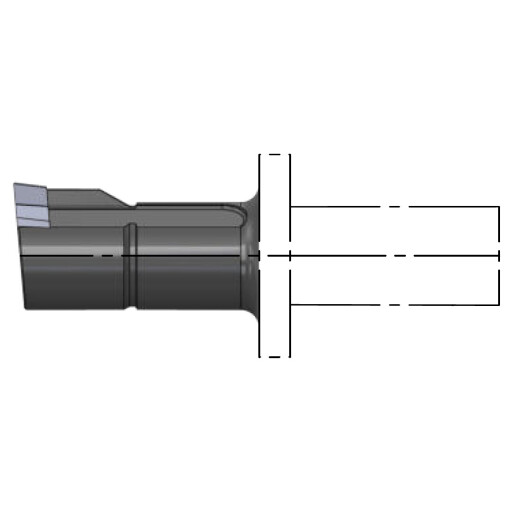

NHV pistoyksikoille image

Kiilauranpistopidin

NHV.22-30

Pistoyksikköön yhteensopiva kiilauranpistopidin DIN 138 sekä DIN 6885 urille.

Reiän minimihalkaisija 22-30mm, uran leveys 5-20mm

D min mm

WT kg

L3 mm

L1 mm
NHV.22.0012.1

D min mm
22,0

WT kg
0.10680000000000001

L3 mm
25

L1 mm
40

136,75 €

Order
NHV.22.0015.1

D min mm
22,0

WT kg
0.1104

L3 mm
33

L1 mm
37

178,65 €

Order
NHV.22.0015.2

D min mm
22,0

WT kg
0.1104

L3 mm
30

L1 mm
50

197,20 €

Order
NHV.22.0016.1

D min mm
22,0

WT kg
0,17399999999999799

L3 mm
30

L1 mm
45

178,65 €

Order
NHV.22.0016.2

D min mm
22,0

WT kg
0,17399999999999799

L3 mm
30

L1 mm
65

197,20 €

Order
NHV.22.0020.1.IK

D min mm
22,0

WT kg
0,17399999999999799

L3 mm
39,5

L1 mm
46

208,25 €

Order
NHV.22.0020.2.IK

D min mm
22,0

WT kg
0.23400000000000001

L3 mm
39,5

L1 mm
66

229,85 €

Order
NHV.22.MP16.1

D min mm
22,0

WT kg
0,17399999999999799

L3 mm
34

L1 mm
45

208,25 €

Order
NHV.22.MP16.2

D min mm
22,0

WT kg
0,17399999999999799

L3 mm
34

L1 mm
75

232,60 €

Order
NHV.22.MT16.1

D min mm
22,0

WT kg
0,17399999999999799

L3 mm
25

L1 mm
58

178,65 €

Order
NHV.22.WT16.1

D min mm
22,0

WT kg
0,17399999999999799

L3 mm
6

L1 mm
49

208,25 €

Order
NHV.30.0012.1

D min mm
30,0

WT kg
0,175199999999999

L3 mm
25

L1 mm
40

136,75 €

Order
