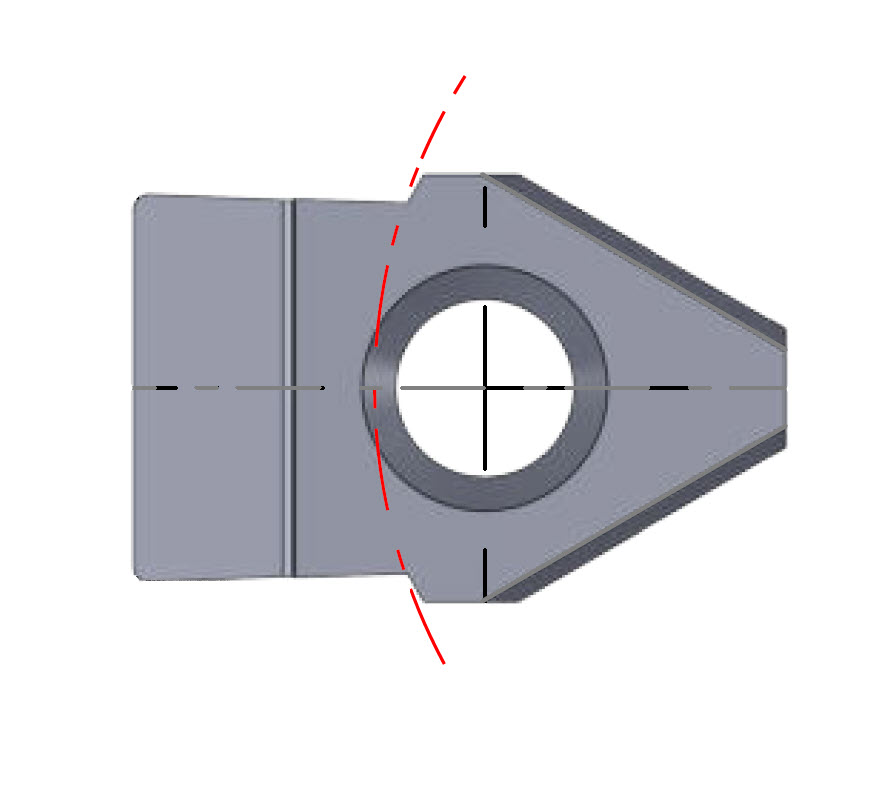

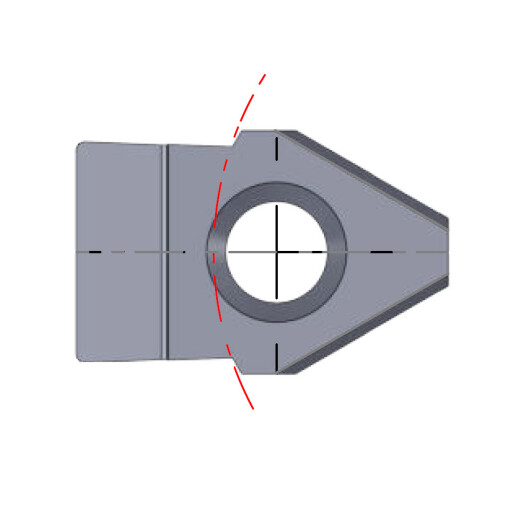

Kiilauranpistoterä
NPV/AL41F
Kiilauranpistoterä DIN 138 sekä DIN 6885 urille.
Reiän minimihalkaisija 22-45mm
Uran syvyys maks. 10mm
Toleranssit C11 / JS9 / P9 / H9 / tuuma
P
M
K
N
S
H
O
-
D min mmt max mmWT kgB mm
-
NPV.0498.02/AL41F
D min mm22,0t max mm2,7WT kg9.5999999999999992E-3B mm4,9827,55 €
-
NPV.0501.02/AL41F
D min mm22,0t max mm2,7WT kg9.5999999999999992E-3B mm5,0127,55 €
-
NPV.050D.02/AL41F
D min mm22,0t max mm2,7WT kg9.5999999999999992E-3B mm5,0527,55 €
-
NPV.050H.02/AL41F
D min mm22,0t max mm2,7WT kg9.5999999999999992E-3B mm5,0227,55 €
-
NPV.0598.02/AL41F
D min mm22,0t max mm3,4WT kg9.5999999999999992E-3B mm5,9827,55 €
-
NPV.0601.02/AL41F
D min mm22,0t max mm3,4WT kg9.5999999999999992E-3B mm6,0127,55 €
-
NPV.060D.02/AL41F
D min mm22,0t max mm3,4WT kg9.5999999999999992E-3B mm6,0527,55 €
-
NPV.060H.02/AL41F
D min mm22,0t max mm3,4WT kg9.5999999999999992E-3B mm6,0227,55 €
-
NPV.0612.085/AL41F
D min mm22,0t max mm2,6WT kg9.5999999999999992E-3B mm6,1227,55 €
-
NPV.0713.085/AL41F
D min mm22,0t max mm3,3WT kg1.0800000000000001E-2B mm7,1327,55 €
-
NPV.0798.02/AL41F
D min mm30,0t max mm4,1WT kg1.0800000000000001E-2B mm7,9827,55 €
-
NPV.0801.02/AL41F
D min mm30,0t max mm4,1WT kg9.5999999999999992E-3B mm8,0127,55 €
-
NPV.080D.02/AL41F
D min mm30,0t max mm4,1WT kg9.5999999999999992E-3B mm8,0627,55 €
-
NPV.080H.02/AL41F
D min mm30,0t max mm4,1WT kg9.5999999999999992E-3B mm8,0227,55 €
-
NPV.0813.105/AL41F
D min mm30,0t max mm3,4WT kg8.3999999999999995E-3B mm8,1327,55 €
-
NPV.0998.03/AL41F
D min mm38,0t max mm4,2WT kg1.0800000000000001E-2B mm9,9827,55 €
-
NPV.1001.03/AL41F
D min mm38,0t max mm4,2WT kg1.0800000000000001E-2B mm10,0127,55 €
-
NPV.100D.03/AL41F
D min mm38,0t max mm4,2WT kg9.5999999999999992E-3B mm10,0627,55 €
-
NPV.100H.03/AL41F
D min mm38,0t max mm4,2WT kg1.0800000000000001E-2B mm10,0227,55 €
-
NPV.1013.105/AL41F
D min mm38,0t max mm4,2WT kg1.44E-2B mm10,1327,55 €
-
NPV.1197.03/AL41F
D min mm38,0t max mm5,7WT kg1.5599999999999999E-2B mm11,9827,55 €
-
NPV.1202.03/AL41F
D min mm38,0t max mm5,7WT kg1.5599999999999999E-2B mm12,0227,55 €
-
NPV.1202.05/AL41F
D min mm38,0t max mm8,5WT kg1.5599999999999999E-2B mm12,0227,55 €
-
NPV.120D.03/AL41F
D min mm38,0t max mm5,7WT kg9.5999999999999992E-3B mm12,0827,55 €
