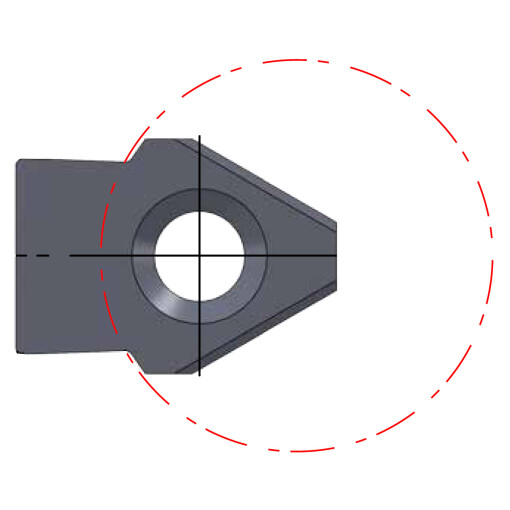

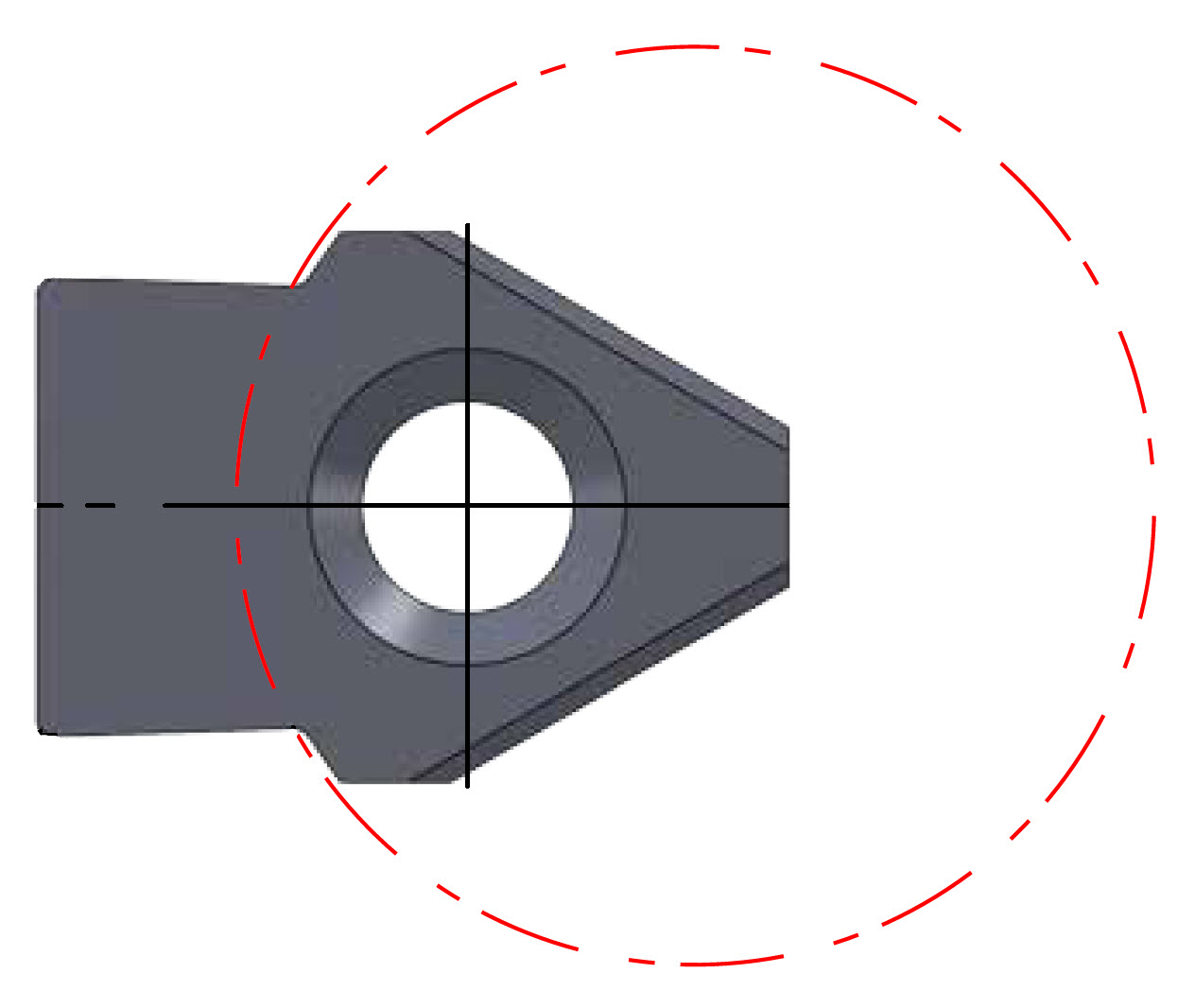

Kiilauranpistoterä
NV10/AL41F
Kiilauranpistoterä DIN 138 sekä DIN 6885 urille.
Reiän minimihalkaisija 10mm
Uran syvyys maks. 2,8mm
Toleranssit P9 / JS9 / H9
P
M
K
N
S
H
O
-
t max mmD min mmWT kgB mm
-
NV10.0298.02/AL41F
D min mm10,0t max mm1,8WT kg9.5999999999999992E-3B mm2,9827,55 €
-
NV10.0301.02/AL41F
D min mm10,0t max mm1,8WT kg9.5999999999999992E-3B mm3,0127,55 €
-
NV10.030D.02/AL41F
D min mm10,0t max mm1,8WT kg9.5999999999999992E-3B mm3,03527,55 €
-
NV10.0398.02/AL41F
D min mm10,0t max mm2,3WT kg9.5999999999999992E-3B mm3,9827,55 €
-
NV10.0401.02/AL41F
D min mm10,0t max mm2,3WT kg9.5999999999999992E-3B mm4,0127,55 €
-
NV10.040D.02/AL41F
D min mm10,0t max mm2,3WT kg9.5999999999999992E-3B mm4,0527,55 €
-
NV10.0498.02/AL41F
D min mm10,0t max mm2,8WT kg9.5999999999999992E-3B mm4,9827,55 €
-
NV10.0501.02/AL41F
D min mm10,0t max mm2,8WT kg9.5999999999999992E-3B mm5,0127,55 €
-
NV10.050D.02/AL41F
D min mm10,0t max mm2,8WT kg9.5999999999999992E-3B mm5,0527,55 €
