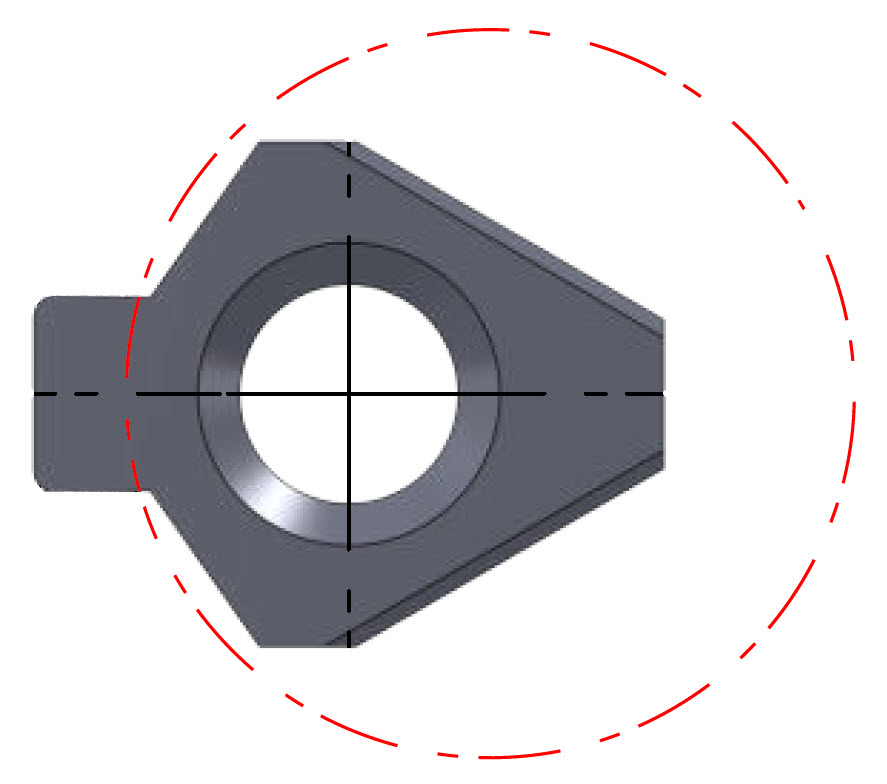

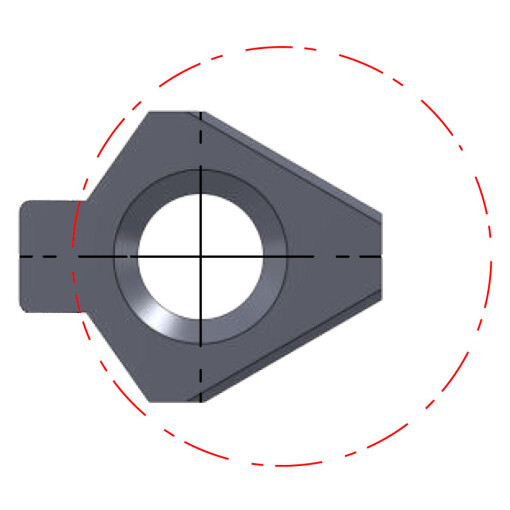

Kiilauranpistoterä
NV15/AL41F
Kiilauranpistoterä DIN 138 sekä DIN 6885 urille.
Reiän minimihalkaisija 15mm
Uran syvyys maks. 3,3mm
Toleranssit P9 / JS9 / D9 / C11 / tuuma
P
M
K
N
S
H
O
-
t max mmD min mmWT kgB mm
-
NV15.0398.02/AL41F
D min mm15,0t max mm2,3WT kg9.5999999999999992E-3B mm3,9827,55 €
-
NV15.0401.02/AL41F
D min mm15,0t max mm2,3WT kg9.5999999999999992E-3B mm4,0127,55 €
-
NV15.040D.02/AL41F
D min mm15,0t max mm2,3WT kg9.5999999999999992E-3B mm4,0527,55 €
-
NV15.0410.050/AL41F
D min mm15,0t max mm2,2WT kg9.5999999999999992E-3B mm4,127,55 €
-
NV15.0498.02/AL41F
D min mm15,0t max mm2,8WT kg9.5999999999999992E-3B mm4,9827,55 €
-
NV15.0501.02/AL41F
D min mm15,0t max mm2,8WT kg9.5999999999999992E-3B mm5,0127,55 €
-
NV15.050D.02/AL41F
D min mm15,0t max mm2,8WT kg9.5999999999999992E-3B mm5,0527,55 €
-
NV15.0510.050/AL41F
D min mm15,0t max mm2,5WT kg9.5999999999999992E-3B mm5,127,55 €
-
NV15.0598.02/AL41F
D min mm15,0t max mm3,3WT kg9.5999999999999992E-3B mm5,9827,55 €
-
NV15.0601.02/AL41F
D min mm15,0t max mm3,3WT kg9.5999999999999992E-3B mm6,0127,55 €
-
NV15.060D.02/AL41F
D min mm15,0t max mm3,3WT kg9.5999999999999992E-3B mm6,0527,55 €
-
NV15.0612.085/AL41F
D min mm15,0t max mm2,6WT kg9.5999999999999992E-3B mm6,1227,55 €
-
NV15.U0478.02/AL41F
D min mm15,0t max mm2,8WT kg9.5999999999999992E-3B mm4,7829,85 €
