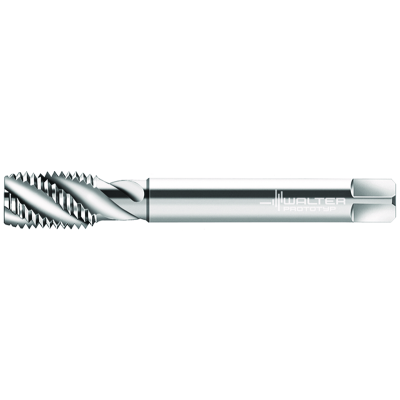

HSS-E machine taps
P23569-UNF3/4
EAN-code: 4042446238872
For long-chipping materials
P
M
K
N
S
H
O
VAT 0%
132,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

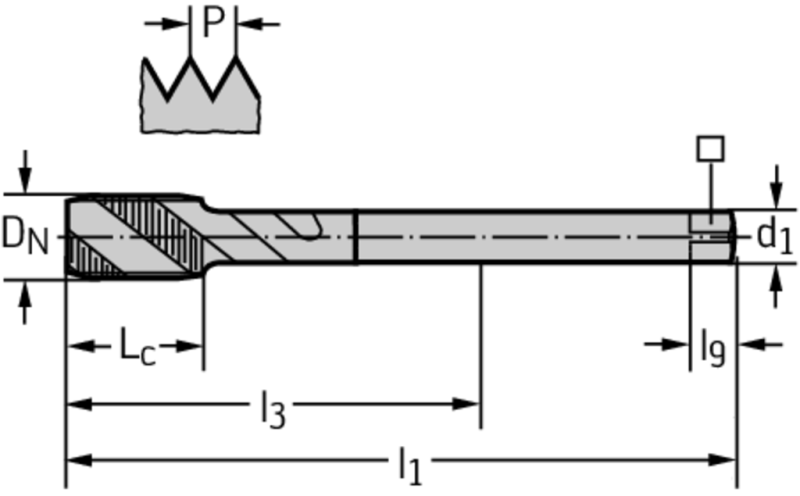

Technical details
Description
Symbol
Value
Thread size
DN
false
Connection diameter
d1
14 mm
Functional length
l1
11 mm
Driving square length
l9
14 mm
usable length
l3
66 mm
Number of grooves
N
4 kpl
Tool designation
Designation
P23569-UNF3/4
Thread size
DN-P
UNF 3/4-16
Thread length
Lc
17 mm
Clamping width
11 mm
