Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape CN.. 45° approach angle PCSN – Lever clamp PCSNR 0586964912

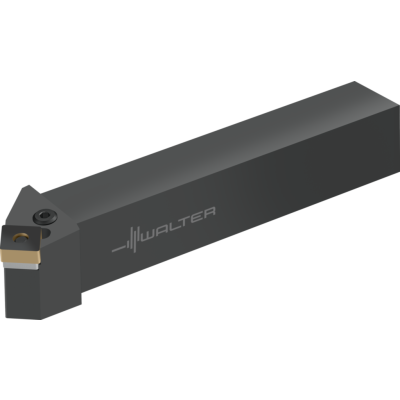

Shank tool – Lever clamping

PCSNR2525M12

EAN-code: 0586964912
T-Ex-PCSN-Icon
T-WSP-CNMG-Icon T-WSP-CNMM-Icon
VAT 0% 105,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-PCSN-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Orthogonal rake angle
γ
-8 °
Shank height
h = h1
25 mm
Inclination angle
λs
-8 °
Functional length
l1
150 mm
Overall length
l20
160 mm
Projection length
l4
19,7 mm
Tool designation
Designation
PCSNR2525M12
Insert seat size
12
Possible indexable inserts
Type
CN .. 1204 ..
Functional width
f1
23,9 mm
Functional width
f
32 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
CNMM HU3 TTG2 P 01
CNMM-HU3
Negative rhombic 80°
Show variations
CNMM HU7 TTG2 P 01
CNMM-HU7
Negative rhombic 80°
Show variations
W T CNGG MN3 ANTHRA HIPIMS P 01
CNGG-MN3
Negative rhombic 80°
Show variations
W T CNGA SMS CER CHAMP P 01
CNGA-SMS
Ceramic – Negative rhombic 80°
Show variations
W-T-CNMG-MU5-TTG3-P-01
CNMG-MU5
Negative rhombic 80°
Show variations
CNMM-HU5-TTG2-P-01
CNMM-HU5
Negative rhombic 80°
Show variations
W-T-CNMG-RP7-TTG3-P-01
CNMG-RP7
Negative rhombic 80°
Show variations
W-T-CNMG-RP5-TTG3-P-01
CNMG-RP5
Negative rhombic 80°
Show variations
W-T-CNMG-RM5-TTG3-P-01
CNMG-RM5
Negative rhombic 80°
Show variations
W T CNMG NRT SILVER P 01
CNMG-NRT
Negative rhombic 80°
Show variations
W T CNMG NRS SILVER P 01
CNMG-NRS
Negative rhombic 80°
Show variations
W T CNMG NMT SILVER P 01
CNMG-NMT
Negative rhombic 80°
Show variations
W T CNMG NMS SILVER P 01
CNMG-NMS
Negative rhombic 80°
Show variations
W T CNMG NFT SILVER P 01
CNMG-NFT
Negative rhombic 80°
Show variations
W-T-CNMG-MS3-TTG3-P-01
CNMG-MS3
Negative rhombic 80°
Show variations
W-T-CNMG-MP5-TTG3-P-01
CNMG-MP5
Negative rhombic 80°
Show variations
CNMG-MM5-SILVER-P-01
CNMG-MM5
Negative rhombic 80°
Show variations
W T CNMG FM5 SILVER P 01
CNMG-FM5
Negative rhombic 80°
Show variations
W T CNMG MK5 SILVER P 01
CNMG-MK5
Negative rhombic 80°
Show variations
W-T-CNMG-MP3-TTG3-P-01
CNMG-MP3
Negative rhombic 80°
Show variations
W-T-CNMG-FP5-TTG3-P-01
CNMG-FP5
Negative rhombic 80°
Show variations
W T CNMA RK7 SILVER P 01
CNMA-RK7
Negative rhombic 80°
Show variations
W T CNMA RK5 SILVER P 01
CNMA-RK5
Negative rhombic 80°
Show variations
W T CNMG NFT GREY P 01
CNGG-NFT
Negative rhombic 80°
Show variations
W T CNGG MS3 ANTHRA P 01
CNGG-MS3
Negative rhombic 80°
Show variations
W T CNGA GREY P 01
CNGA-C
Ceramic – Negative rhombic 80°
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 DO25 P P 01
A2120-DO-P
Doosan adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W A A2120 BT45 P 01
A2120-BMT-P
BMT adaptor – DIN 69880 shank tools
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
