Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape SN.. Approach angle 75° – Longitudinal turning PSBN – Lever clamp PSBNR 0585351912

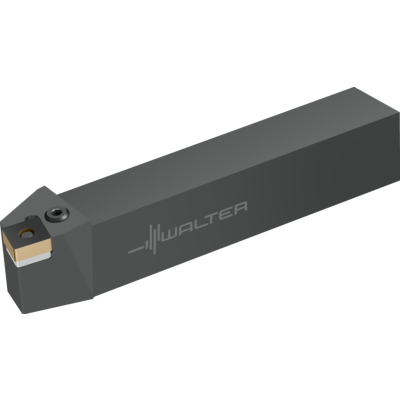

Shank tool – Lever clamping

PSBNR2020K12

EAN-code: 0585351912
T-Ex-xSBx-Icon
T-WSP-SNMG-Icon T-WSP-SNMM-Icon
VAT 0% 99,30 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-PSBN-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
20 mm
Orthogonal rake angle
γ
-6 °
Shank height
h = h1
20 mm
Inclination angle
λs
-6 °
Overall length
l1
125 mm
Projection length
l4
27,5 mm
Tool designation
Designation
PSBNR2020K12
Insert seat size
12
Possible indexable inserts
Type
SN .. 1204 ..
