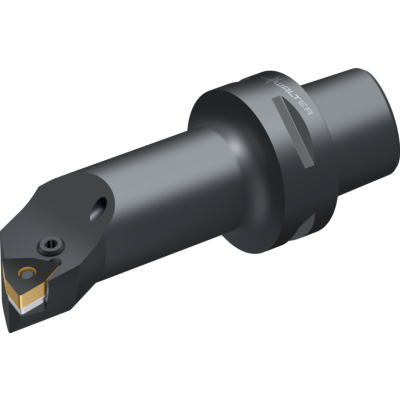

Boring bar – Lever clamping

C4-PWLNR-17090-06

EAN-code: 0348672967
T-In-xWLx-Icon
T-WSP-WNMG-Icon T-WSP-WNMM-Icon
Walter CaptoTM
VAT 0% 326,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-PWLN-CAPTO-IN-D-01
Enlarge
Description Symbol Value
Connection size code
d1
C4
Body diameter
d2
25 mm
Connection diameter
d1
C4 mm
Minimum diameter
Dmin
32 mm
Orthogonal rake angle
γ
-6 °
Inclination angle
λs
-10 °
Functional length
l16
68 mm
Projection length
l4
9 mm
Tool designation
Designation
C4-PWLNR-17090-06
Possible indexable inserts
Type
WN .. 0604 ..
Functional width
f
17 mm
