Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape CC.. SCLC – Screw clamping w. precision cool. SCLCL-S-P 4063464947829
Shank tool – Screw clamping

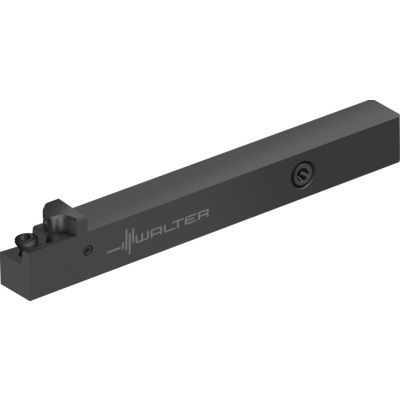

SCLCL1212J09-S-P NEW 2023

EAN-code: 4063464947829
T-Ex-xCLx-Icon
PointCool-Icon T-Swisstype-M-Icon T-WSP-CC-Icon
For Swiss Machining Precision cooling
VAT 0% 212,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SCLCL-ISO-AUSSEN-S-P-D-01
Enlarge
Description Symbol Value
Shank width
B
12 mm
Coolant entry thread size
Th
M8X1
Orthogonal rake angle
γ
0 °
Shank height
h = h1
12 mm
Inclination angle
λs
0 °
Functional length
l1
110 mm
Projection length
l4
18 mm
Tool designation
Designation
SCLCL1212J09-S-P
Insert seat size
9
Possible indexable inserts
Type
CC .. 09T3 ..
Functional width
f
12 mm
