Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape CC.. SCLC – Screw clamping SCLCR 0589748913

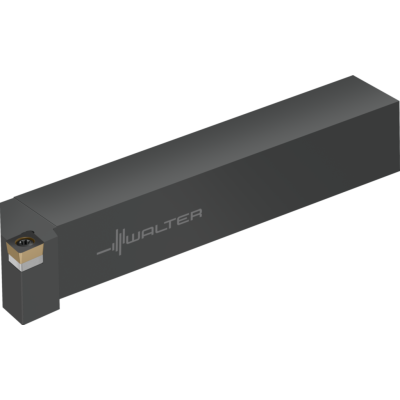

Shank tool – Screw clamping

SCLCR1212F06

EAN-code: 0589748913
T-Ex-xCLx-Icon
T-WSP-CC-Icon
VAT 0% 96,80 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SCLC-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
12 mm
Orthogonal rake angle
γ
0 °
Shank height
h = h1
12 mm
Inclination angle
λs
0 °
Overall length
l1
80 mm
Projection length
l4
10 mm
Tool designation
Designation
SCLCR1212F06
Possible indexable inserts
Type
CC .. 0602 ..
Functional width
f
16 mm
Compatible products
Products
Assembly parts
CCGT-R-FX4-ANTHRA-P-01
CCGT-R-FX4
Positive rhombic 80°
Show variations
CCGT-L-FX4-ANTHRA-P-01
CCGT-L-FX4
Positive rhombic 80°
Show variations
CCGT-FL2-TTG2-P-01
CCGT-FL2
Positive rhombic 80°
Show variations
CCMT-FW4-TTG2-WIPER-P-01
CCMT-FW4
Positive rhombic 80°
Show variations
CCMT MP6 TTG2 P 01
CCMT-MP6
Positive rhombic 80°
Show variations
W T CCGT FP2 CU P 01
CCGT-FP2
Positive rhombic 80°
Show variations
W T CCMW RK6 SILVER P 01
CCMW-RK6
Positive rhombic 80°
Show variations
CCMT-RP4-TTG2-P-01
CCMT-RP4
Positive rhombic 80°
Show variations
W T CCMT RM4 SILVER P 01
CCMT-RM4
Positive rhombic 80°
Show variations
W T CCMT RK4 SILVER P 01
CCMT-RK4
Positive rhombic 80°
Show variations
CCMT-MP4-TTG2-P-01
CCMT-MP4
Positive rhombic 80°
Show variations
W T CCMT MM4 SILVER P 01
CCMT-MM4
Positive rhombic 80°
Show variations
W T CCMT MK4 SILVER P 01
CCMT-MK4
Positive rhombic 80°
Show variations
CCMT-FP6-TTG2-P-01
CCMT-FP6
Positive rhombic 80°
Show variations
W T CCMT FM6 SILVER P 01
CCMT-FM6
Positive rhombic 80°
Show variations
W T CCMT FK6 SILVER P 01
CCMT-FK6
Positive rhombic 80°
Show variations
CCMT-FP4-TTG2-P-01
CCMT-FP4
Positive rhombic 80°
Show variations
W T CCMT FM4 SILVER P 01
CCMT-FM4
Positive rhombic 80°
Show variations
W T CCGW 9 PCD P 02
CCGW_FSR-9
PCD – Positive rhombic 80°
Show variations
CCGW-TM-2-WTZ-P-01
CCGW_TM-2
CBN – Positive rhombic 80°
Show variations
W T CCGW 9 PCD P 01
CCGW_FSL-9
PCD – Positive rhombic 80°
Show variations
CCGW-TM-2-CBNBR-P-01
CCGW_TS-2
CBN – Positive rhombic 80°
Show variations
W T CCGW 1 PCD P 01
CCGW_FS-1
PCD – Positive rhombic 80°
Show variations
W T CCGW TM 2 CBN P 01
CCGW_EM-2
CBN – Positive rhombic 80°
Show variations
W-T-CCGT-M1-PCD-CHIPBREAKER-P-01
CCGT_FS-M1
PCD – Positive rhombic 80°
Show variations
CCGT-MP4-TTG2-P-01
CCGT-MP4
Positive rhombic 80°
Show variations
W T CCGT MM4 SILVER P 01
CCGT-MM4
Positive rhombic 80°
Show variations
W T CCGT MK4 SILVER P 01
CCGT-MK4
Positive rhombic 80°
Show variations
W T CCGT 1 PCD P 01
CCGT_FS-1
PCD – Positive rhombic 80°
Show variations
W-T-CCGT-FN2-ANTHRA-POL-P-02-1
CCGT-FN2
Positive rhombic 80°
Show variations
W-T-CCGT-MN2-ANTHRA-POL-P-02-1
CCGT-MN2
Positive rhombic 80°
Show variations
W T CCGT FM2 SILVER P 01
CCGT-FM2
Positive rhombic 80°
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
