Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape DC.. Approach angle 93° SDJC – Screw clamping w. precision cool. SDJCR-S-P 4063464947874

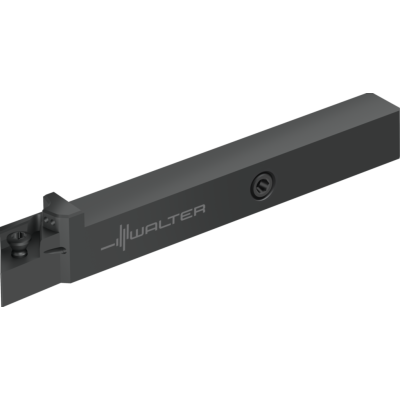

Shank tool – Screw clamping

SDJCR1616X11-S-P NEW 2023

EAN-code: 4063464947874
T-Ex-SDJx-Icon
PointCool-Icon T-Swisstype-M-Icon T-WSP-DC-Icon
For Swiss Machining Precision cooling
VAT 0% 212,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SDJCR-ISO-AUSSEN-S-P-D-01
Enlarge
Description Symbol Value
Shank width
B
16 mm
Coolant entry thread size
Th
G1/8"
Orthogonal rake angle
γ
0 °
Shank height
h = h1
16 mm
Inclination angle
λs
0 °
Functional length
l1
120 mm
Projection length
l4
22 mm
Tool designation
Designation
SDJCR1616X11-S-P
Insert seat size
11
Possible indexable inserts
Type
DC .. 11T3 ..
Functional width
f
16 mm
Compatible products
Products
Assembly parts
DCGT-R-FX4-ANTHRA-P-01
DCGT-R-FX4
Positive rhombic 55°
Show variations
DCGT-L-FX4-ANTHRA-P-01
DCGT-L-FX4
Positive rhombic 55°
Show variations
DCGT-FL2-TTG2-P-01
DCGT-FL2
Positive rhombic 55°
Show variations
DCMT-FW4-TTG2-WIPER-P-01
DCMT-FW4
Positive rhombic 55°
Show variations
DCMT-MW4-TTG2-WIPER-P-01
DCMT-MW4
Positive rhombic 55°
Show variations
DCMT MP6 TTG2 P 01
DCMT-MP6
Positive rhombic 55°
Show variations
W T DCGT FP2 CU P 01
DCGT-FP2
Positive rhombic 55°
Show variations
W T DCMW RK6 SILVER P 01
DCMW-RK6
Positive rhombic 55°
Show variations
DCMT-RP4-TTG2-P-01
DCMT-RP4
Positive rhombic 55°
Show variations
W T DCMT RM4 SILVER P 01
DCMT-RM4
Positive rhombic 55°
Show variations
W T DCMT RK4 SILVER P 01
DCMT-RK4
Positive rhombic 55°
Show variations
DCMT-MP4-TTG2-P-01
DCMT-MP4
Positive rhombic 55°
Show variations
W T DCMT MM4 SILVER P 01
DCMT-MM4
Positive rhombic 55°
Show variations
W T DCMT MK4 SILVER P 01
DCMT-MK4
Positive rhombic 55°
Show variations
DCMT-FP6-TTG2-P-01
DCMT-FP6
Positive rhombic 55°
Show variations
W T DCMT FM6 SILVER P 01
DCMT-FM6
Positive rhombic 55°
Show variations
W T DCMT FK6 SILVER P 01
DCMT-FK6
Positive rhombic 55°
Show variations
DCMT-FP4-TTG2-P-01
DCMT-FP4
Positive rhombic 55°
Show variations
W T DCMT FM4 SILVER P 01
DCMT-FM4
Positive rhombic 55°
Show variations
DCGW-TM-2-WTZ-P-01
DCGW_TS-2
CBN – Positive rhombic 55°
Show variations
W T DCGW TM 2 CBN P 01
DCGW_EM-2
CBN – Positive rhombic 55°
Show variations
W T DCGW 1 PCD P 01
DCGW_FS-1
PCD – Positive rhombic 55°
Show variations
DCGW-TM-2-WTZ-P-01
DCGW_TM-2
CBN – Positive rhombic 55°
Show variations
W-T-DCGT-M1-PCD-CHIPBREAKER-P-01
DCGT_FS-M1
PCD – Positive rhombic 55°
Show variations
DCGT-MP4-TTG2-P-01
DCGT-MP4
Positive rhombic 55°
Show variations
W T DCGT MM4 SILVER P 01
DCGT-MM4
Positive rhombic 55°
Show variations
DCGT-1-PCD-P-01
DCGT_FS-1
PCD – Positive rhombic 55°
Show variations
W-T-DCGT-FN2-ANTHRA-POL-P-02-1
DCGT-FN2
Positive rhombic 55°
Show variations
W-T-DCGT-MN2-ANTHRA-POL-P-02-1
DCGT-MN2
Positive rhombic 55°
Show variations
W T DCGT FM2 SILVER P 01
DCGT-FM2
Positive rhombic 55°
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
