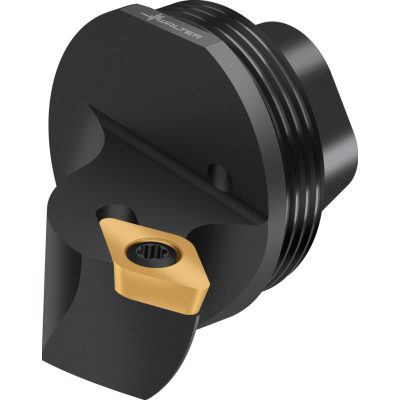

Products Cutting tools Turning Vibration-damped boring bars QuadFit exchangeable head, positive DC.. Approach angle 62.5° SDXCR 0636358914
Replaceable head – screw clamping

Q25-SDXCR-17018-11 NEW 2020

EAN-code: 0636358914
T-In-SDXC-Icon
T-WSP-DC-Icon
QuadFit For Accure·tec boring bars
VAT 0% 354,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SDXC-QUADFIT-IN-D-01
Enlarge
Description Symbol Value
Connection diameter
d1
Q25 mm
Minimum diameter
Dmin
32 mm
Orthogonal rake angle
γ
0 °
Inclination angle
λs
-6 °
Overall length
l1
24,3 mm
Projection length
l4
18 mm
Tool designation
Designation
Q25-SDXCR-17018-11
Insert seat size
11
Possible indexable inserts
Type
DC .. 11T3 ..
Functional width
f
17 mm
X 1
4,5 mm
Compatible products
Products
Adaptors
Assembly parts
DCGT-R-FX4-ANTHRA-P-01
DCGT-R-FX4
Positive rhombic 55°
Show variations
DCGT-L-FX4-ANTHRA-P-01
DCGT-L-FX4
Positive rhombic 55°
Show variations
DCGT-FL2-TTG2-P-01
DCGT-FL2
Positive rhombic 55°
Show variations
DCMT-FW4-TTG2-WIPER-P-01
DCMT-FW4
Positive rhombic 55°
Show variations
DCMT-MW4-TTG2-WIPER-P-01
DCMT-MW4
Positive rhombic 55°
Show variations
DCMT MP6 TTG2 P 01
DCMT-MP6
Positive rhombic 55°
Show variations
W T DCGT FP2 CU P 01
DCGT-FP2
Positive rhombic 55°
Show variations
DCMT-RP4-TTG2-P-01
DCMT-RP4
Positive rhombic 55°
Show variations
W T DCMT RM4 SILVER P 01
DCMT-RM4
Positive rhombic 55°
Show variations
W T DCMT RK4 SILVER P 01
DCMT-RK4
Positive rhombic 55°
Show variations
DCMT-MP4-TTG2-P-01
DCMT-MP4
Positive rhombic 55°
Show variations
W T DCMT MM4 SILVER P 01
DCMT-MM4
Positive rhombic 55°
Show variations
W T DCMT MK4 SILVER P 01
DCMT-MK4
Positive rhombic 55°
Show variations
DCMT-FP4-TTG2-P-01
DCMT-FP4
Positive rhombic 55°
Show variations
W T DCMT FM4 SILVER P 01
DCMT-FM4
Positive rhombic 55°
Show variations
DCGW-TM-2-WTZ-P-01
DCGW_TS-2
CBN – Positive rhombic 55°
Show variations
W T DCGW TM 2 CBN P 01
DCGW_EM-2
CBN – Positive rhombic 55°
Show variations
W T DCGW 1 PCD P 01
DCGW_FS-1
PCD – Positive rhombic 55°
Show variations
DCGW-TM-2-WTZ-P-01
DCGW_TM-2
CBN – Positive rhombic 55°
Show variations
W-T-DCGT-M1-PCD-CHIPBREAKER-P-01
DCGT_FS-M1
PCD – Positive rhombic 55°
Show variations
DCGT-MP4-TTG2-P-01
DCGT-MP4
Positive rhombic 55°
Show variations
W T DCGT MM4 SILVER P 01
DCGT-MM4
Positive rhombic 55°
Show variations
DCGT-1-PCD-P-01
DCGT_FS-1
PCD – Positive rhombic 55°
Show variations
W-T-DCGT-FN2-ANTHRA-POL-P-02-1
DCGT-FN2
Positive rhombic 55°
Show variations
W-T-DCGT-MN2-ANTHRA-POL-P-02-1
DCGT-MN2
Positive rhombic 55°
Show variations
W T DCGT FM2 SILVER P 01
DCGT-FM2
Positive rhombic 55°
Show variations
W A A3000 HSK T P 01
A3000-HSK-T-QUADFIT-INNEN
HSK-T adaptor – vibration damped
Show variations
W A A3000 CAPTO P 01
A3000-CAPTO-QUADFIT-INNEN
Walter CaptoTM Adaptor – vibration damped
Show variations
W A A3000 Z P 01
A3000-QUADFIT-INNEN-RUND
Cylinder shaft adaptor – vibration damped
Show variations
W A A3000 QUADFIT F P 01
A3000-QUADFIT-INNEN
Cylinder shaft adaptor – vibration damped
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
