Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape SC.. Approach angle 45° – neutral SSDCN – Screw clamping 0590207913

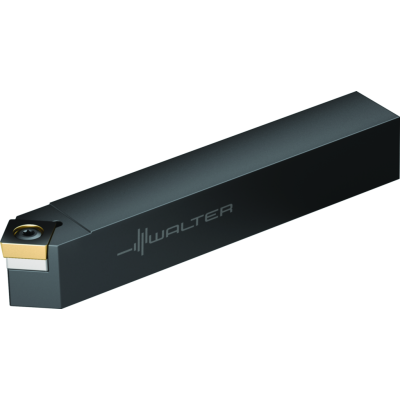

Shank tool – Screw clamping

SSDCN2020K12

EAN-code: 0590207913
T-Ex-xSDxN-Icon
T-WSP-SC-Icon
VAT 0% 108,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SSDCN-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
20 mm
Orthogonal rake angle
γ
0 °
Shank height
h = h1
20 mm
Inclination angle
λs
0 °
Overall length
l1
125 mm
Projection length
l4
22 mm
Tool designation
Designation
SSDCN2020K12
Insert seat size
12
Possible indexable inserts
Type
SC .. 1204 ..
Functional width
f
10 mm
Compatible products
Products
Adaptors
Assembly parts
W T SCMW RK6 SILVER P 01
SCMW-RK6
Positive square
Show variations
SCMT-RP4-TTG2-P-01
SCMT-RP4
Positive square
Show variations
W T SCMT RM4 SILVER P 01
SCMT-RM4
Positive square
Show variations
W T SCMT RK4 SILVER P 01
SCMT-RK4
Positive square
Show variations
SCMT-MP4-TTG2-P-01
SCMT-MP4
Positive square
Show variations
W T SCMT MM4 SILVER P 01
SCMT-MM4
Positive square
Show variations
W T SCMT MK4 SILVER P 01
SCMT-MK4
Positive square
Show variations
SCMT-FP6-TTG2-P-01
SCMT-FP6
Positive square
Show variations
W T SCMT FM6 SILVER P 01
SCMT-FM6
Positive square
Show variations
W T SCMT FK6 SILVER P 01
SCMT-FK6
Positive square
Show variations
SCMT-FP4-TTG2-P-01
SCMT-FP4
Positive square
Show variations
W T SCMT FM4 SILVER P 01
SCMT-FM4
Positive square
Show variations
SCGT-MP4-TTG2-P-01
SCGT-MP4
Positive square
Show variations
W-T-SCGT-MN2-ANTHRA-POL-P-02-1
SCGT-MN2
Positive square
Show variations
W-T-SCGT-MM4-SILVER-P-01
SCGT-MM4
Positive square
Show variations
W-T-SCGT-FN2-ANTHRA-POL-P-02-1
SCGT-FN2
Positive square
Show variations
W T SCGT MK4 SILVER P 01
SCGT-MK4
Positive square
Show variations
W T SCGT FM2 SILVER P 01
SCGT-FM2
Positive square
Show variations
W-A-C5-ASHR3-36123-20-P-02-1
ASH-AXIAL-3-CAPTO
Axial adaptor
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W A A2120 BT45 P 01
A2120-BMT-P
BMT adaptor – DIN 69880 shank tools
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
