Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape SC.. Approach angle 45° SSDC – Screw clamping SSDCR 0584153913

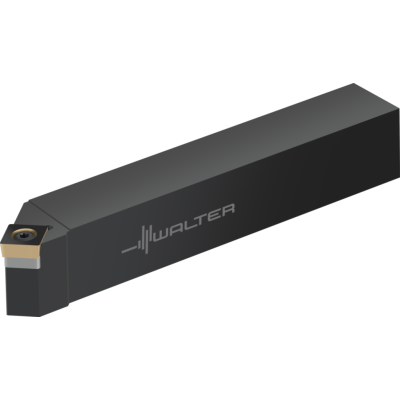

Shank tool – Screw clamping

SSDCR1616H09

EAN-code: 0584153913
T-Ex-xSSx-Icon
T-WSP-SC-Icon
VAT 0% 96,80 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SSDC-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
16 mm
Orthogonal rake angle
γ
0 °
Shank height
h = h1
16 mm
Inclination angle
λs
0 °
Functional length
l1
100 mm
Overall length
l20
100 mm
Projection length
l4
9,1 mm
Tool designation
Designation
SSDCR1616H09
Insert seat size
9
Possible indexable inserts
Type
SC .. 09T3 ..
Functional width
f
10,9 mm
Compatible products
Products
Assembly parts
W T SCGW TS 4 CBN P 01
SCGW_TS-4
CBN – Positive square
Show variations
W T SCMW RK6 SILVER P 01
SCMW-RK6
Positive square
Show variations
SCMT-RP4-TTG2-P-01
SCMT-RP4
Positive square
Show variations
W T SCMT RM4 SILVER P 01
SCMT-RM4
Positive square
Show variations
W T SCMT RK4 SILVER P 01
SCMT-RK4
Positive square
Show variations
SCMT-MP4-TTG2-P-01
SCMT-MP4
Positive square
Show variations
W T SCMT MM4 SILVER P 01
SCMT-MM4
Positive square
Show variations
W T SCMT MK4 SILVER P 01
SCMT-MK4
Positive square
Show variations
SCMT-FP6-TTG2-P-01
SCMT-FP6
Positive square
Show variations
W T SCMT FM6 SILVER P 01
SCMT-FM6
Positive square
Show variations
W T SCMT FK6 SILVER P 01
SCMT-FK6
Positive square
Show variations
SCMT-FP4-TTG2-P-01
SCMT-FP4
Positive square
Show variations
W T SCMT FM4 SILVER P 01
SCMT-FM4
Positive square
Show variations
W T SCGW 9 PCD P 01
SCGW_FS-9
PCD – Positive square
Show variations
SCGT-MP4-TTG2-P-01
SCGT-MP4
Positive square
Show variations
W-T-SCGT-MN2-ANTHRA-POL-P-02-1
SCGT-MN2
Positive square
Show variations
W-T-SCGT-MM4-SILVER-P-01
SCGT-MM4
Positive square
Show variations
W-T-SCGT-FN2-ANTHRA-POL-P-02-1
SCGT-FN2
Positive square
Show variations
W T SCGT MK4 SILVER P 01
SCGT-MK4
Positive square
Show variations
W T SCGT FM2 SILVER P 01
SCGT-FM2
Positive square
Show variations
imageComingSoon big en US
Z_SHIM
Washer
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
