Products Cutting tools Turning ISO turning Walter Capto™ boring bars Positive basic shape TC.. STFC – Screw clamping STFCR 0577006967

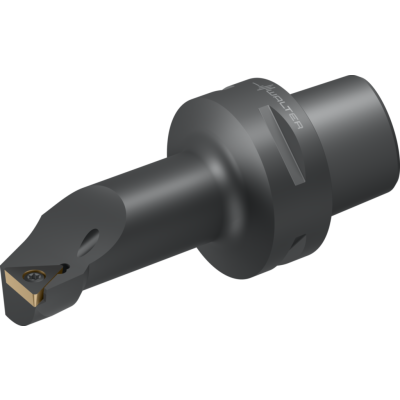

Boring bar – Screw clamping

C5-STFCR-11070-11

EAN-code: 0577006967
T-In-xTFx-Icon
T-WSP-TC-Icon
Walter CaptoTM
VAT 0% 362,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-STFC-CAPTO-IN-D-01
Enlarge
Description Symbol Value
Connection size code
d1
C5
Body diameter
d2
16 mm
Connection diameter
d1
C5 mm
Minimum diameter
Dmin
20 mm
Inclination angle
λs
-12 °
Functional length
l16
46 mm
Projection length
l4
7 mm
Tool designation
Designation
C5-STFCR-11070-11
Possible indexable inserts
Type
TC .. 1102 ..
Functional width
f
11 mm
Compatible products
Products
Adaptors
Assembly parts
TCGT-R-FX4-ANTHRA-P-01
TCGT-R-FX4
Positive triangular 60°
Show variations
TCGT-L-FX4-ANTHRA-P-01
TCGT-L-FX4
Positive triangular 60°
Show variations
TCMT-FW4-TTG2-WIPER-P-01
TCMT-FW4
Positive triangular 60°
Show variations
TCMT MP6 TTG2 P 01
TCMT-MP6
Positive triangular 60°
Show variations
TCGW-TM-3-WTZ-P-01
TCGW_TM-3
CBN – Positive triangular 60°
Show variations
W T TCGT FP2 CU P 01
TCGT-FP2
Positive triangular 60°
Show variations
TCGW-TS-3-CBN-P-MV-AD
TCGW_TS-3
CBN – Positive triangular 60°
Show variations
W T TCMW RK6 SILVER P 01
TCMW-RK6
Positive triangular 60°
Show variations
TCMT-FP6-TTG2-P-01
TCMT-FP6
Positive triangular 60°
Show variations
W T TCMT FM6 SILVER P 01
TCMT-FM6
Positive triangular 60°
Show variations
W T TCMT FK6 SILVER P 01
TCMT-FK6
Positive triangular 60°
Show variations
TCMT-RP4-TTG2-P-01
TCMT-RP4
Positive triangular 60°
Show variations
W T TCMT RM4 SILVER P 01
TCMT-RM4
Positive triangular 60°
Show variations
W T TCMT RK4 SILVER P 01
TCMT-RK4
Positive triangular 60°
Show variations
TCMT-MP4-TTG2-P-01
TCMT-MP4
Positive triangular 60°
Show variations
W T TCMT MM4 SILVER P 01
TCMT-MM4
Positive triangular 60°
Show variations
W T TCMT MK4 SILVER P 01
TCMT-MK4
Positive triangular 60°
Show variations
TCMT-FP4-TTG2-P-01
TCMT-FP4
Positive triangular 60°
Show variations
W T TCMT FM4 SILVER P 01
TCMT-FM4
Positive triangular 60°
Show variations
W T TCGW 9 PCD P 01
TCGW_FS-9
PCD – Positive triangular 60°
Show variations
W T TCGW 1 PCD P 01
TCGW_FS-1
PCD – Positive triangular 60°
Show variations
W-T-TCGT-MN2-ANTHRA-POL-P-02-1
TCGT-MN2
Positive triangular 60°
Show variations
W-T-TCGT-MM4-SILVER-P-01
TCGT-MM4
Positive triangular 60°
Show variations
TCGT-MP4-TTG2-P-01
TCGT-MP4
Positive triangular 60°
Show variations
W T TCGT MK4 SILVER P 01
TCGT-MK4
Positive triangular 60°
Show variations
W-T-TCGT-FN2-ANTHRA-POL-P-02-1
TCGT-FN2
Positive triangular 60°
Show variations
W T TCGT FM2 SILVER P 01
TCGT-FM2
Positive triangular 60°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W-A-391-02-CAPTO-P-01
391.02-ZYLINDRISCH-CAPTO
Reduction adaptor
Show variations
W A 391 02 CAPTO P 01
391.02-KONISCH-CAPTO
Reduction adaptor
Show variations
W A NC2000 CAPTO P 01
NC2000
Clamping units
Show variations
W A 2085 CAPTO P 01
R/LC2085-VIERKANT
Clamping units
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W-A-2060VDI-CAPTO-P-02
R/LC20 GERADE-VDI
VDI DIN 69880 clamping units
Show variations
W A 2060VDI CAPTO P 01
R/LC20 ABGEWINKELT-VDI
VDI DIN 69880 clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
