Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape VB.. /VC.. 93° approach angle SVJB – Screw clamping w. precision cool. SVJBR-P 4063465509712

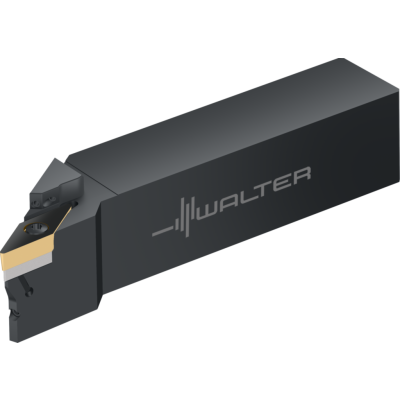

Shank tool – Screw clamping

SVJBR2525X16-P NEW 2024

EAN-code: 4063465509712
T-Ex-PVJB-Icon
PointCool-Icon T-WSP-VB-Icon T-WSP-VC-Icon
Precision cooling
VAT 0% 255,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SVJBR-ISO-AUSSEN-P-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Coolant entry thread size
Th
G1/8"
Orthogonal rake angle
γ
0 °
Shank height
h = h1
25 mm
Inclination angle
λs
0 °
Functional length
l1
125 mm
Projection length
l4
33,5 mm
Tool designation
Designation
SVJBR2525X16-P
Insert seat size
16
Possible indexable inserts
Type
VB .. 1604 ..
Functional width
f
32 mm
