Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape VB.. /VC.. 93° approach angle SVJB – Screw clamping w. precision cool. SVJBR-S-P 4063465509453

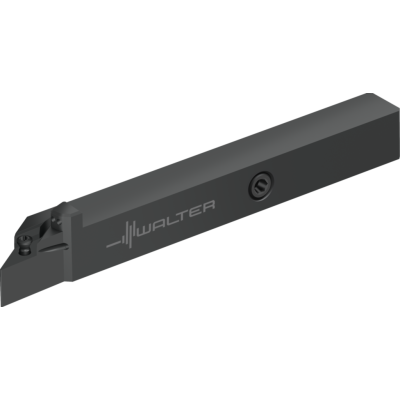

Shank tool – Screw clamping

SVJBR1010H11-S-P NEW 2024

EAN-code: 4063465509453
T-Ex-PVJB-Icon
PointCool-Icon T-Swisstype-M-Icon T-WSP-VB-Icon T-WSP-VC-Icon
For Swiss Machining Precision cooling
VAT 0% 212,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-SVJBR-ISO-AUSSEN-S-P-D-01
Enlarge
Description Symbol Value
Shank width
B
10 mm
Coolant entry thread size
Th
M6
Orthogonal rake angle
γ
0 °
Shank height
h = h1
10 mm
Inclination angle
λs
0 °
Functional length
l1
100 mm
Projection length
l4
22 mm
Tool designation
Designation
SVJBR1010H11-S-P
Insert seat size
11
Possible indexable inserts
Type
VB .. 1103 ..
Functional width
f
1 mm
Compatible products
Products
Assembly parts
VCGT-R-FX4-ANTHRA-P-01
VCGT-R-FX4
Positive rhombic 35°
Show variations
VCGT-L-FX4-ANTHRA-P-01
VCGT-L-FX4
Positive rhombic 35°
Show variations
VBGT-FL2-TTG2-P-01
VBGT-FL2
Positive rhombic 35°
Show variations
W T VCGT FP2 CU P 01
VCGT-FP2
Positive rhombic 35°
Show variations
VCMT-RP4-TTG2-P-01
VCMT-RP4
Positive rhombic 35°
Show variations
W T VCMT RM4 SILVER P 01
VCMT-RM4
Positive rhombic 35°
Show variations
W T VCMT RK4 SILVER P 01
VCMT-RK4
Positive rhombic 35°
Show variations
VCMT-FP4-TTG2-P-01
VCMT-FP4
Positive rhombic 35°
Show variations
W T VCMT FM4 SILVER P 01
VCMT-FM4
Positive rhombic 35°
Show variations
VCGW-TM-2-WTZ-P-01
VCGW_TS-2
CBN – Positive rhombic 35°
Show variations
W T VCGW1 PCD P 01
VCGW_FS-1
PCD – Positive rhombic 35°
Show variations
VCGW-TM-2-CBN-P-01
VCGW_EM-2
CBN – Positive rhombic 35°
Show variations
W T VCGT 1 PCD P 01
VCGT_FS-1
PCD – Positive rhombic 35°
Show variations
W-T-VCGT-MM4-SILVER-P-01
VCGT-MM4
Positive rhombic 35°
Show variations
W-T-VCGT-MN2-ANTHRA-POL-P-02-1
VCGT-MN2
Positive rhombic 35°
Show variations
W T VCGT FM2 SILVER P 01
VCGT-FM2
Positive rhombic 35°
Show variations
W-T-VCGT-FN2-ANTHRA-POL-P-02-1
VCGT-FN2
Positive rhombic 35°
Show variations
VBMT-MP4-TTG2-P-01
VBMT-MP4
Positive rhombic 35°
Show variations
W-T-VBMT-MM4-SILVER-P-01
VBMT-MM4
Positive rhombic 35°
Show variations
VBMT-FP6-TTG2-P-01
VBMT-FP6
Positive rhombic 35°
Show variations
W T VBMT FM6 SILVER P 01
VBMT-FM6
Positive rhombic 35°
Show variations
W T VBMT FK6 SILVER P 01
VBMT-FK6
Positive rhombic 35°
Show variations
VCGW-TM-2-WTZ-P-01
VBGW_TM-2
CBN – Positive rhombic 35°
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
