Dümmel
SXX.R/AL41F
Minicut-muotosorvausterä

Muotosorvausterä
TIALN -pinnoitteella - Yleiskäyttöinen, kestää hyvin korkeita lämpötiloja ja kovuutta
Sopiva myös ei-rautametalleille.

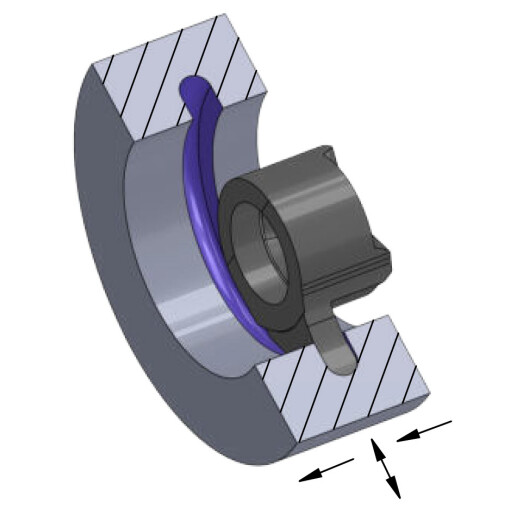

Kuvassa oikeakätinen terä.
P
M
K
N
S
H
O
-
D min mmf mmR mms mm
-
LS08.008R04/AL41F
D min mm8,0f mm4,8R mm0,4s mm3,315,85 €
-
LS08.012R06/AL41F
D min mm8,0f mm4,8R mm0,6s mm3,315,85 €
-
LS08.018R09/AL41F
D min mm8,0f mm4,8R mm0,9s mm3,315,85 €
-
LS08.020R10/AL41F
D min mm8,0f mm4,8R mm1,0s mm3,315,85 €
-
LS08.U15R08/AL41F
D min mm8,0f mm4,8R mm0,78s mm3,315,85 €
-
LS09.008R04/AL41F
D min mm9,0f mm5,5R mm0,4s mm3,516,45 €
-
LS09.010R05/AL41F
D min mm9,0f mm5,5R mm0,5s mm3,516,45 €
-
LS09.012R06/AL41F
D min mm9,0f mm5,5R mm0,6s mm3,516,45 €
-
LS09.018R09/AL41F
D min mm9,0f mm5,5R mm0,9s mm3,516,45 €
-
LS09.020R10/AL41F
D min mm9,0f mm5,5R mm1,0s mm3,516,45 €
-
LS11.008R04/AL41F
D min mm11,0f mm6,7R mm0,4s mm4,216,45 €
-
LS11.012R06/AL41F
D min mm11,0f mm6,7R mm0,6s mm4,216,45 €
-
LS11.016R08/AL41F
D min mm11,0f mm6,7R mm0,8s mm4,216,45 €
-
LS11.018R09/AL41F
D min mm11,0f mm6,7R mm0,9s mm4,216,45 €
-
LS11.020R10/AL41F
D min mm11,0f mm6,7R mm1,0s mm4,216,45 €
-
LS11.024R12/AL41F
D min mm11,0f mm6,7R mm1,2s mm4,216,45 €
-
LS11.030R15/AL41F
D min mm11,0f mm6,7R mm1,5s mm4,216,45 €
-
LS11.U11R05/AL41F
D min mm11,0f mm6,7R mm0,58s mm4,216,45 €
-
LS11.U15R08/AL41F
D min mm11,0f mm6,7R mm0,79s mm4,216,45 €
-
LS14.008R04/AL41F
D min mm14,0f mm9,0R mm0,4s mm5,217,10 €
-
LS14.010R05/AL41F
D min mm14,0f mm9,0R mm0,5s mm5,317,10 €
-
LS14.012R06/AL41F
D min mm14,0f mm9,0R mm0,6s mm5,317,10 €
-
LS14.018R09/AL41F
D min mm14,0f mm9,0R mm0,9s mm5,317,10 €
-
LS14.020R10/AL41F
D min mm14,0f mm9,0R mm1,0s mm5,317,10 €
