Products Cutting tools Threading Thread milling Thread milling cutters with indexable inserts Indexable insert thread milling cutters UNC- / UNF- / UN-thread 1,5xD Indexable insert in two rows 0642195730
Indexable insert thread milling cutter

T2710-18-W16-3-06-2-11.3 NEW 2020

EAN-code: 0642195730
P-Tr-Blind-Through-Holes-Icon Tr-Profil-UNC-UNF-UN-Icon
M-WSP-pos-Icon Tr-1-5xDN-Icon-inch Tr-1-5xDN-Icon Tr-IKA-Icon Tr-IKR-Icon
Universal indexable insert thread milling cutter Radius correction values: Walter GPS/Technical information
P
M
K
N
S
H
O
VAT 0% 404,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

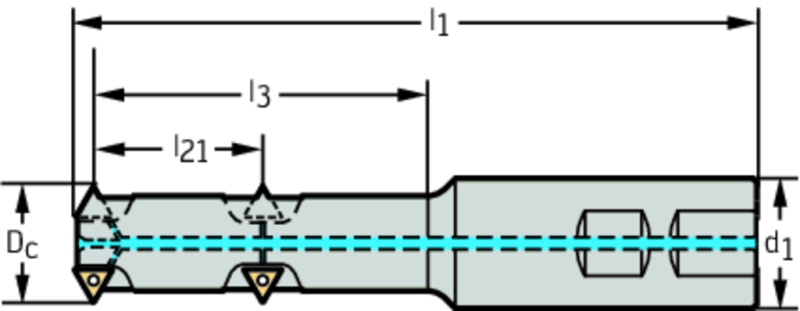

W TR T2711 W D 03
Enlarge
Description Symbol Value
Thread size
DN
UNC 7/8-9
Cutting edge diameter
Dc
18 mm
Number of indexable inserts
Number of cutting edges
6
Connection diameter
d1
16 mm
Functional length
l3
36,5 mm
Overall length
l1
92 mm
Tool designation
Designation
T2710-18-W16-3-06-2-11.3
Row distance
l21
11,3 mm
P max TPI
PmaxTPI
9
Type
P26300-06 ..
Number of teeth
Z
3
