Products Cutting tools Threading Thread milling Thread milling cutters with indexable inserts Indexable insert thread milling cutters M- / MF-thread 2xD Indexable Inserts in three rows 0893530730

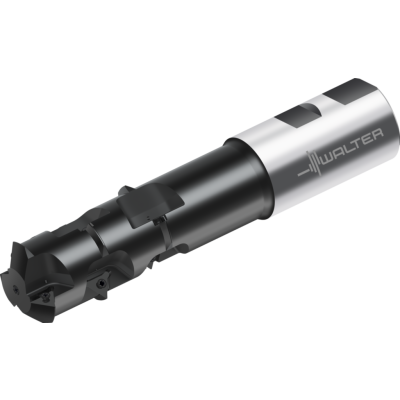

Indexable insert thread milling cutter

T2711-44-W40-3-14-3-33

EAN-code: 0893530730
P-Tr-Blind-Through-Holes-Icon Tr-Profil-M-MF-DIN-Icon
M-WSP-pos-Icon Tr-2xDN-Icon Tr-IKA-Icon Tr-IKR-Icon
Universal indexable insert thread milling cutter Radius correction values: Walter GPS/Technical information
P
M
K
N
S
H
O
VAT 0% 1045,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-T2711-W-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
44 mm
Thread size
DN
M 56
Number of indexable inserts
Number of cutting edges
9
Connection diameter
d1
40 mm
Functional length
l3
119 mm
Overall length
l1
202 mm
Tool designation
Designation
T2711-44-W40-3-14-3-33
Row distance
l21
33 mm
P max
5,5 mm
Type
P26300-14 ..
Number of teeth
Z
3
