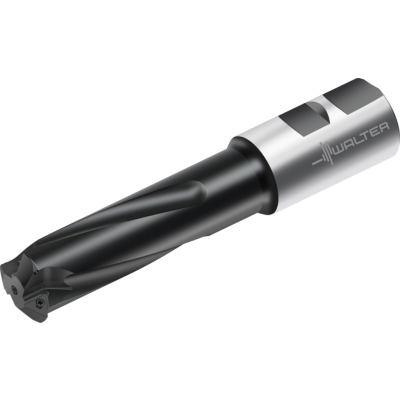

Indexable insert thread milling cutter

T2712-40-W40-3-14

EAN-code: 0923738730
P-Tr-Blind-Through-Holes-Icon Tr-Profil-G-BSP-DIN-Icon Tr-Profil-UNC-UNF-UN-Icon Tr-Profil-M-MF-DIN-Icon
M-WSP-pos-Icon Tr-2-5xDN-Icon-inch Tr-2-5xDN-Icon Tr-IKA-Icon Tr-IKR-Icon
Universal indexable insert thread milling cutter Radius correction values: Walter GPS/Technical information
P
M
K
N
S
H
O
VAT 0% 693,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-T2712-M-W-1-D-01
Enlarge
Description Symbol Value
Thread size
DN
M 48
Cutting edge diameter
Dc
40 mm
Number of indexable inserts
Number of cutting edges
3
Connection diameter
d1
40 mm
Functional length
l3
127 mm
Overall length
l1
211 mm
Tool designation
Designation
T2712-40-W40-3-14
P max
5 mm
Type
P26300-14 ..
Number of teeth
Z
3
Compatible products
Products
Adaptors
Accessories
Assembly parts
P26310-TTG-P-01
P26310-G-D61
Thread milling cutter inserts – G (BSP)
Show variations
P26300-TTG-P-01
P26300-D67
Thread milling cutter inserts – M, MF, UNC, UNF, UN
Show variations
P26300-TTG-P-01
P26300-D61
Thread milling cutter inserts – M, MF, UNC, UNF, UN
Show variations
W A A170M EX NCT P 01
A170M.0-EX
Adaptor for eccentric sleeve
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
