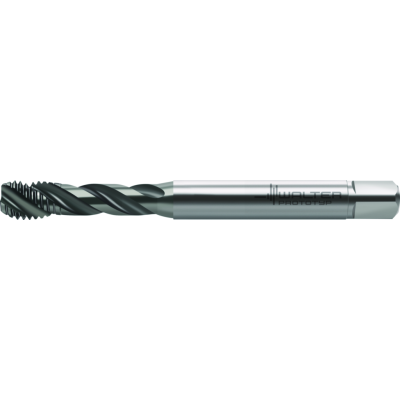

HSS-E (-PM) machine taps

TC121-M3-C0-WW60RG

EAN-code: 4042446280338
P-Tr-Blind-Holes-Icon Tr-Tol-6HX Tr-Profil-M-DIN-Icon
Tr-2-5xDN-Icon-inch TR-380-230HB-Icon-inch Tr-1300-800-Nmm2-Icon Tr-2-5xDN-Icon Tr-Anschnitt-C-2-3-Icon
WY80BD = HSS-E + TiCN WW60RG = HSS-E-PM + TiALN
P
M
K
N
S
H
O
VAT 0% 61,30 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Connection diameter
d1
3,5 mm
Functional length
l1
56 mm
Driving square length
l9
6 mm
usable length
l3
11 mm
Number of grooves
N
3 kpl
Tool designation
Designation
TC121-M3-C0-WW60RG
Thread size
DN
M 3
Thread length
Lc
6 mm
Thread pitch
P
0,5 mm
Clamping width
2,7 mm
Compatible products
Adaptors
W A A331 P 01
A331.0
Quick-change collet
Show variations
W-A-C330-P-01
C330-ER11
DIN 6499 ER collets
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
P TR PROTOFLEXC S9018351 P 01
AB035-W
Synchronous thread cutting adaptor
Show variations
W A AB035 J40 ER20 110 P 01
AB035-J
Synchronous thread cutting adaptor
Show variations
W A AB035 C6 ER20 105 P 01
AB035-C
Synchronous thread cutting adaptor
Show variations
W A A305 P 01
A305.0
DIN 1835 B ER collet chuck
Show variations
