HSS-E machine thread formers

TC410-UNC1/4-C6-WY80AD

EAN-code: 4042446290450
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Tol-2BX Tr-Profil-UNC-Icon
Tr-3-5xDN-Icon-inch TR-350-60HB-Icon-inch Tr-1200-200-Nmm2-Icon Tr-3-5xDN-Icon Tr-Anschnitt-C-2-3-Icon
For long-chipping materials
P
M
K
N
S
H
O
VAT 0% 64,30 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

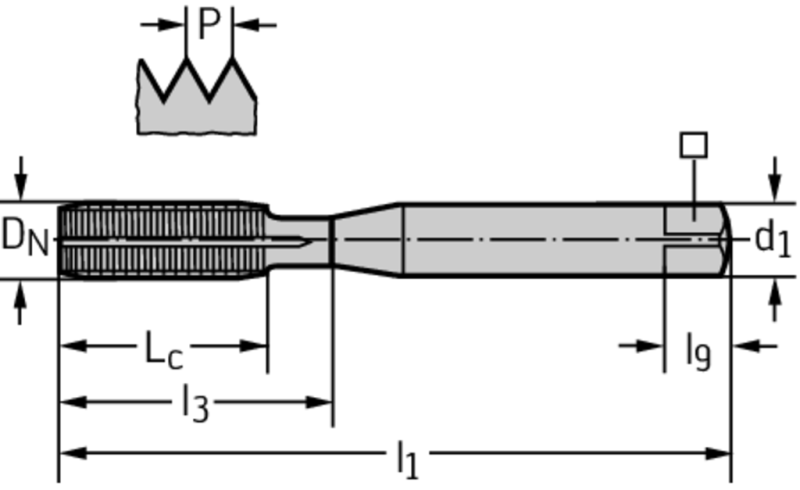

P TR PDYN DP2063705 ZV D 01
Enlarge
Description Symbol Value
Connection diameter
d1
7 mm
Functional length
l1
8 mm
Driving square length
l9
8 mm
usable length
l3
3 mm
Number of grooves
N
5 kpl
Tool designation
Designation
TC410-UNC1/4-C6-WY80AD
Thread size
DN-P
UNC 1/4-20
Thread size
DN-P
6,35
Thread length
Lc
15 mm
Clamping width
5,5 mm
