Products Cutting tools Threading Thread forming HSS-E machine thread formers M-thread ISO2/6H -tolerance Without internal cooling DIN376 TC420 Supreme 4042446288426
HSS-E-PM machine thread formers

TC420-M14-LE-WW60AD

EAN-code: 4042446288426
P-Tr-Blind-Holes-Icon Tr-Tol-6HX Tr-Profil-M-DIN-Icon
Tr-3-5xDN-Icon-inch TR-350-60HB-Icon-inch Tr-1200-200-Nmm2-Icon Tr-3-5xDN-Icon Tr-Anschnitt-E-1-5-2-Icon
For long-chipping materials
P
M
K
N
S
H
O
VAT 0% 159,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

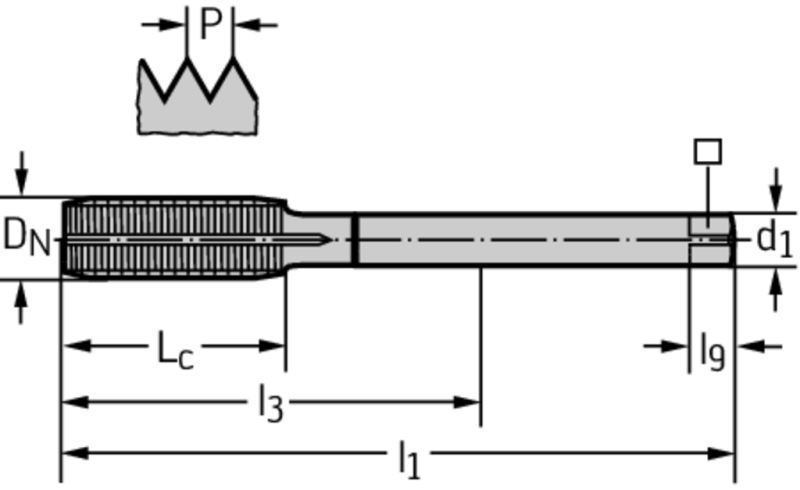

P TR TC420 M L6 D 01
Enlarge
Description Symbol Value
Connection diameter
d1
11 mm
Functional length
l1
11 mm
Driving square length
l9
12 mm
usable length
l3
81 mm
Number of grooves
N
6 kpl
Tool designation
Designation
TC420-M14-LE-WW60AD
Thread size
DN
M 14
Thread length
Lc
2 mm
Thread pitch
P
2 mm
Clamping width
9 mm
