Products Cutting tools Threading Thread forming HSS-E machine thread formers M-thread ISO2/6H -tolerance Without internal cooling DIN376 TC430 Supreme 4042446291631
HSS-E-PM machine thread formers

TC430-M12-L6-WW60EL

EAN-code: 4042446291631
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Tol-6HX Tr-Profil-M-DIN-Icon
Tr-1200-200-Nmm2-Icon Tr-3-5xDN-Icon Tr-3-5xDN-Icon-inch TR-350-60HB-Icon-inch Tr-Anschnitt-C-2-3-Icon
ISO M only with oil For long-chipping materials
P
M
K
N
S
H
O
VAT 0% 156,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

walter supreme

Technical details

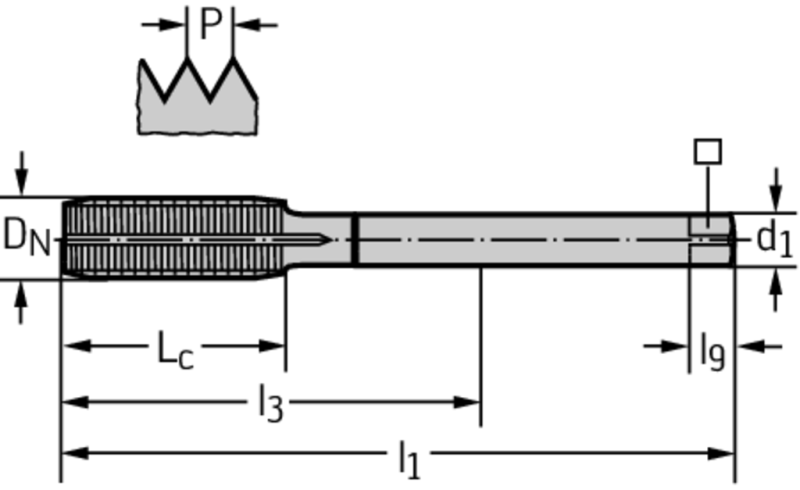

P TR TC430 M L6 D 01
Enlarge
Description Symbol Value
Connection diameter
d1
9 mm
Functional length
l1
11 mm
Driving square length
l9
1 mm
usable length
l3
83 mm
Number of grooves
N
8 kpl
Tool designation
Designation
TC430-M12-L6-WW60EL
Thread size
DN
M 12
Thread length
Lc
16 mm
Thread pitch
P
1,75 mm
Clamping width
7 mm
Compatible products
Adaptors
W A A331 P 01
A331.0
Quick-change collet
Show variations
W A C340 P 01
C340-ER32
DIN 6499 ER tapping collets
Show variations
W-A-C340-P-01
C340-ER20
DIN 6499 ER tapping collets
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A AK300 SK P 01
AK300.S
DIN 69871 A ER collet chuck
Show variations
W A AK300 BT P 01
AK300.BT
MAS-BT JIS B 6339 ER collet chuck
Show variations
W A AK300M HSK P 01
AK300.7
DIN 69893-1 A ER collet chuck
Show variations
P TR PROTOFLEXC S9018351 P 01
AB035-W
Synchronous thread cutting adaptor
Show variations
W A AB035 S40 ER20 120 P 01
AB035-S
Synchronous thread cutting adaptor
Show variations
W A AB035 J40 ER20 110 P 01
AB035-J
Synchronous thread cutting adaptor
Show variations
W A AB035 H63 ER20 108 P 01
AB035-H
Synchronous thread cutting adaptor
Show variations
W A AB035 C6 ER20 105 P 01
AB035-C
Synchronous thread cutting adaptor
Show variations
