Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink M-thread With internal cooling 1,5xD TC610-M-W1 4042446258818

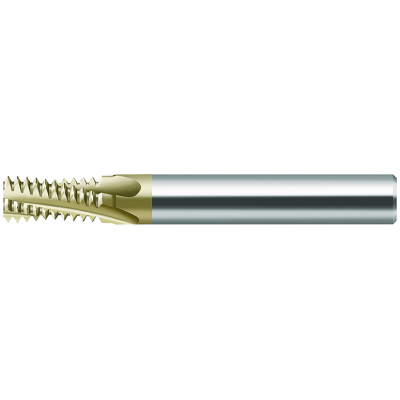

Solid carbide thread milling cutters

TC610-M6-W1-WB10RD

EAN-code: 4042446258818
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-M-MF-DIN-Icon
M-48HRC-Icon Recon-Icon Tr-1-5xDN-Icon-inch Tr-1-5xDN-Icon Tr-Drallw-Fraesen-20-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 256,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR TC610 W1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
4,5 mm
Max. depth of cut
Lc
9 mm
Connection diameter
d1
6 mm
Thread size
DN
M 6
Overall length
l1
57 mm
Functional length
l4
21 mm
Tool designation
Designation
TC610-M6-W1-WB10RD
Thread pitch
P
1 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
