Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink MF-thread With internal cooling 1,5xD TC610-MF-W1 4042446259013

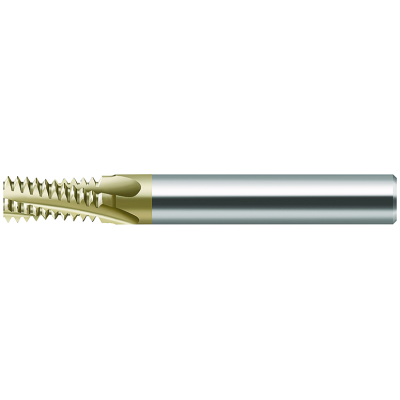

Solid carbide thread milling cutters

TC610-M12X1.5-W1-WB10RD

EAN-code: 4042446259013
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-M-MF-DIN-Icon
M-48HRC-Icon Recon-Icon Tr-1-5xDN-Icon-inch Tr-1-5xDN-Icon Tr-Drallw-Fraesen-20-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 506,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR TC610 W1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10 mm
Max. depth of cut
Lc
18 mm
Connection diameter
d1
10 mm
Thread size
DN
MF 12x1.5
Overall length
l1
72 mm
Functional length
l4
32 mm
Tool designation
Designation
TC610-M12X1.5-W1-WB10RD
Thread pitch
P
1,5 mm
Number of teeth
Z
5
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
