Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink UNC-thread With internal cooling 1,5xD TC610-UNC-W1 4042446257453
Solid carbide thread milling cutters

TC610-UNC7/8-W1-WJ30RC

EAN-code: 4042446257453
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNC-Icon
M-48HRC-Icon Recon-Icon Tr-1-5xDN-Icon-inch Tr-1-5xDN-Icon Tr-Drallw-Fraesen-20-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 689,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

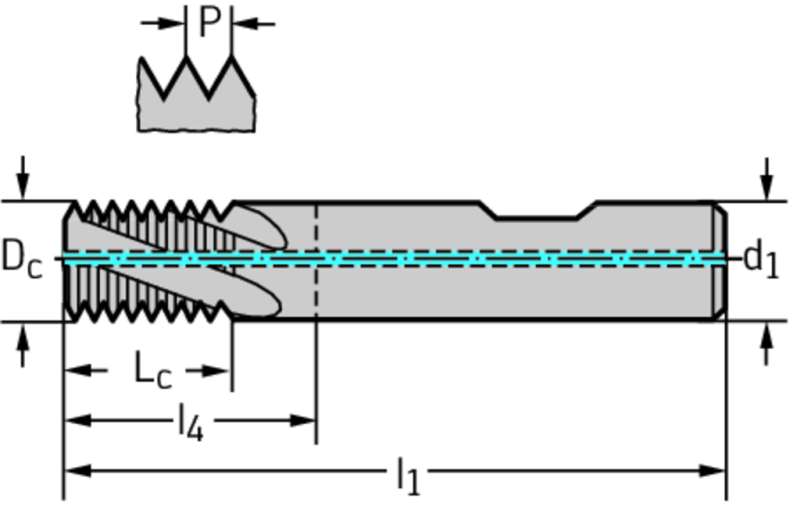

P TR TC610 W1 D 01
Enlarge
Description Symbol Value
Corner radius
r
false mm
Cutting edge diameter
Dc
16 mm
Max. depth of cut
Lc
33,9 mm
Connection diameter
d1
16 mm
Thread size
DN
UNC 7/8-9
Overall length
l1
98 mm
Functional length
l4
50 mm
Tool designation
Designation
TC610-UNC7/8-W1-WJ30RC
Nousu
P
9 "
Number of teeth
Z
5
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
