Solid carbide thread milling cutters

TC610-UNF10-W0-WJ30RC

EAN-code: 4042446256869
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNF-Icon
M-48HRC-Icon Recon-Icon Tr-1-5xDN-Icon-inch Tr-1-5xDN-Icon Tr-Drallw-Fraesen-20-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 199,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

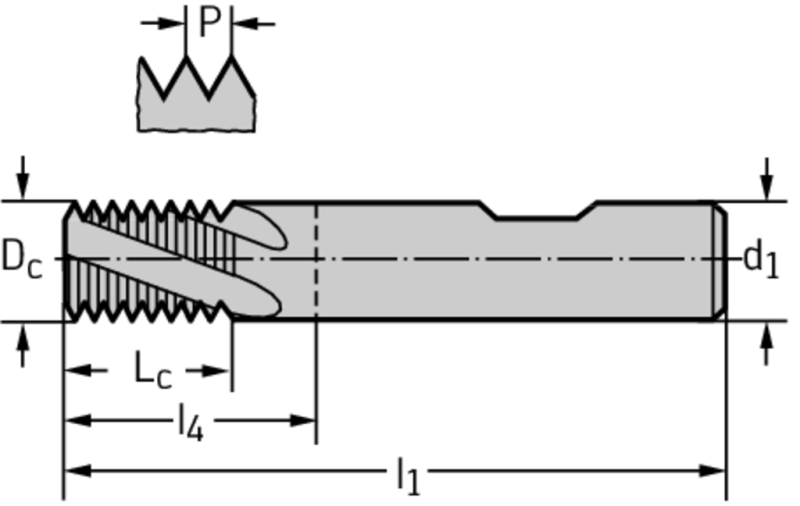

Technical details
Description Symbol Value
Cutting edge diameter
Dc
3,6 mm
Max. depth of cut
Lc
7,9 mm
Connection diameter
d1
6 mm
Thread size
DN
UNF #10-32
Overall length
l1
57 mm
Functional length
l4
21 mm
Tool designation
Designation
TC610-UNF10-W0-WJ30RC
Nousu
P
32 "
Number of teeth
Z
3
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
