Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink UNC-thread Without internal cooling 2xD TC611-UNC-W0 4042446256814

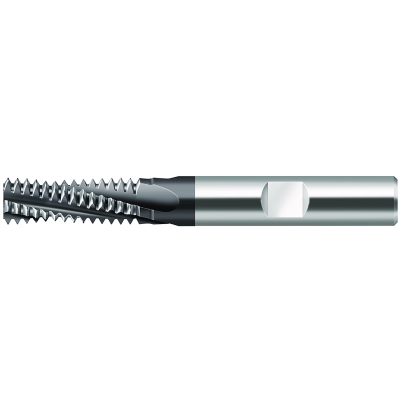

Solid carbide thread milling cutters

TC611-UNC5/8-W0-WJ30RC

EAN-code: 4042446256814
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNC-Icon
M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 412,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR TC611 W0 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
12 mm
Max. depth of cut
Lc
32,3 mm
Connection diameter
d1
12 mm
Thread size
DN
UNC 5/8-11
Overall length
l1
90 mm
Functional length
l4
45 mm
Tool designation
Designation
TC611-UNC5/8-W0-WJ30RC
Nousu
P
11 "
Number of teeth
Z
5
Compatible products
Adaptors
W-A-SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK170 SK P 01
AK170.S
DIN 69871 AD/B Weldon adaptor
Show variations
W A AK170 BT P 01
AK170.BT
MAS-BT JIS B 6339 Weldon adaptor
Show variations
W A A170 HSK P 01
A170.7
DIN 69893-1 A Weldon adaptor
Show variations
