Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink UNF-thread With internal cooling 2xD TC611-UNF-W1 4042446257675

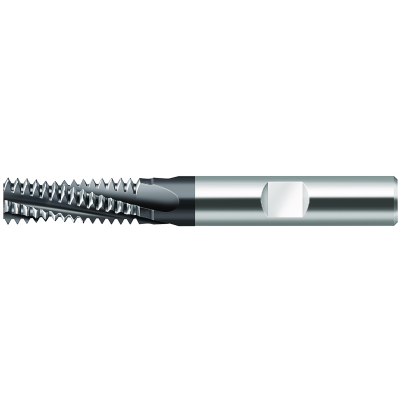

Solid carbide thread milling cutters

TC611-UNF5/16-W1-WJ30RC

EAN-code: 4042446257675
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNF-Icon
M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-Icon Tr-IKA-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
VAT 0% 322,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P TR TC611 W1 D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
6 mm
Max. depth of cut
Lc
15,9 mm
Connection diameter
d1
6 mm
Thread size
DN
UNF 5/16-24
Overall length
l1
57 mm
Functional length
l4
21 mm
Tool designation
Designation
TC611-UNF5/16-W1-WJ30RC
Nousu
P
24 "
Number of teeth
Z
4
