Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink M-thread With internal cooling 2xD TC620-M-A1D 4042446300586
Multiple-row thread milling cutters

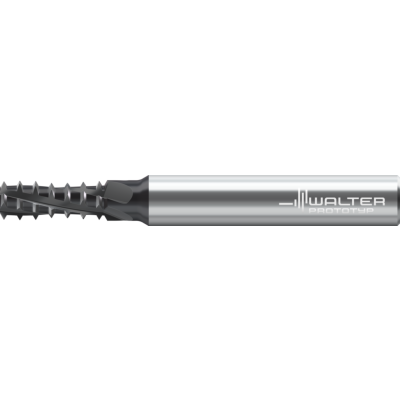

TC620-M5-A1D-WB10TJ

EAN-code: 4042446300586
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-M-MF-DIN-Icon
M-48HRC-Icon Recon-Icon Tr-Drallw-Fraesen-TC620-20-Icon Tr-2xDN-Icon Tr-IKA-Icon
Universal multiple-row thread milling cutters For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0% 198,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

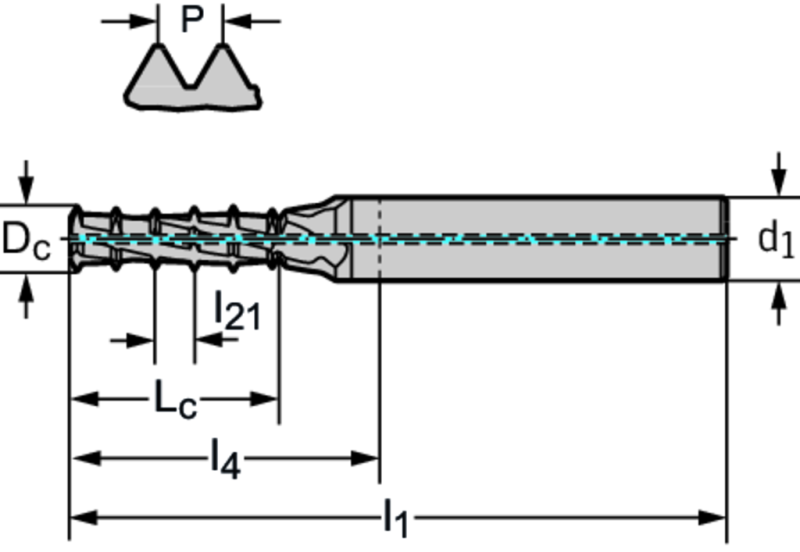

W TR TC620E Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
3,9 mm
Functional length
l4
21 mm
Max. depth of cut
Lc
10,4 mm
Connection diameter
d1
6 mm
Thread size
DN
M 5
Overall length
l1
57 mm
Tool designation
Designation
TC620-M5-A1D-WB10TJ
Functional length
l21
1,6 mm
Thread pitch
P
0,8 mm
Number of teeth
Z
3
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
