Products Cutting tools Threading Thread milling Sol. carb. thread milling cutters w/o countersink MF-thread With internal cooling 2xD Multirow thread mill TC620 TC620-M14X1.5-W5D-WB10TJ
Multiple-row thread milling cutters

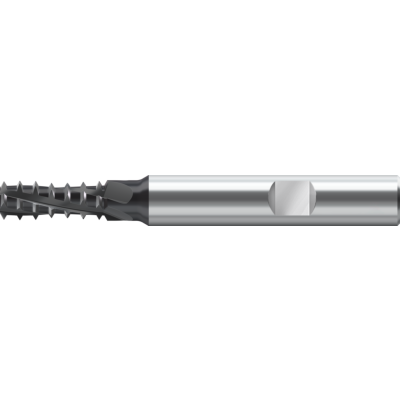

TC620-M14X1.5-W5D-WB10TJ NEW 2022

EAN-code: 4042446322335
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-MF-DIN-Icon
DeVibe-Icon M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-TC620-15-Icon
Universal multiple-row thread milling cutters For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0% 464,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W TR TC620E W D 01
Enlarge
Description Symbol Value
Maximum cutting depth
Lc
28,5 mm
Cutting edge diameter
Dc
11,7 mm
Connection diameter
d1
12
Thread size
DN
MF 14x1.5
Overall length
l1
89 mm
Maximum overhang
l4
44 mm
Tool designation
Designation
TC620-M14X1.5-W5D-WB10TJ
Functional length
l21
3 mm
Thread pitch
P
1,5 mm
Number of teeth
Z
5
Compatible products
Adaptors
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB044-H-P-01
AB044-H
DIN 69893-1 A Weldon adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB044-J-P-01
AB044-J
MAS-BT JIS B 6339 Weldon adaptor
Show variations
AB044-S-P-01
AB044-S
DIN 69871 AD/B Weldon adaptor
Show variations
W-A-391-20-CAPTO-P-01
AB044-C
Weldon shank adaptor
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A A170M NCT P 01
A170M.0
Weldon shank adaptor
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon shank adaptor
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
