Multiple-row thread milling cutters

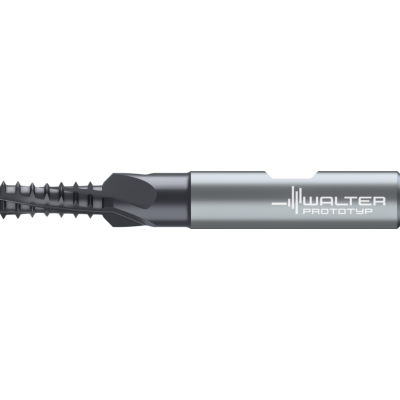

TC620-M16X1.5-WVD-WB10TJ NEW 2025

EAN-code: 4063466501692
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-90-Icon Tr-Profil-MF-DIN-Icon
DeVibe-Icon M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-TC620-15-Icon
Universal multiple-row thread milling cutters For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0% 580,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC620-M-WVD-D-01
Enlarge
Description Symbol Value
Maximum cutting depth
Lc
33 mm
Body diameter
d2
17,2 mm
Cutting edge diameter
Dc
13,6 mm
Connection diameter
d1
18
Thread size
DN
MF 16x1.5
Usable length
l3
60,5 mm
Overall length
l1
112 mm
Maximum overhang
l4
64 mm
Tool designation
Designation
TC620-M16X1.5-WVD-WB10TJ
Functional length
l21
3 mm
Thread pitch
P
1,5 mm
Number of teeth
Z
6
