Multiple-row thread milling cutters

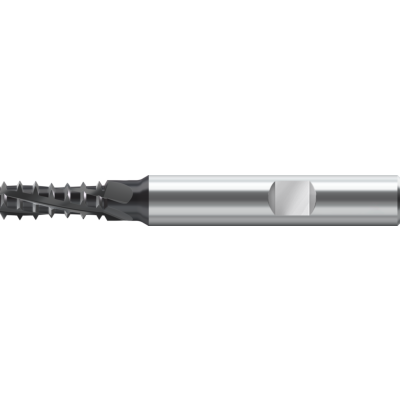

TC620-UNF9/16-W5D-WB10TJ NEW 2022

EAN-code: 4042446322434
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNF-Icon
DeVibe-Icon M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-TC620-15-Icon
Universal multiple-row thread milling cutters For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0% 542,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

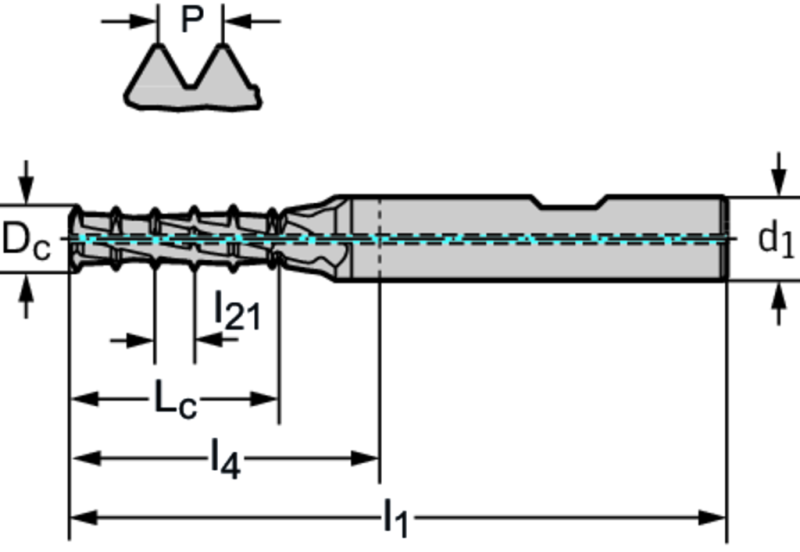

W TR TC620E W D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
12 mm
Functional length
l4
45 mm
Nousu
P
18 "
Max. depth of cut
Lc
29,6 mm
Connection diameter
d1
12 mm
Thread size
DN
UNF 9/16-18
Overall length
l1
90 mm
Tool designation
Designation
TC620-UNF9/16-W5D-WB10TJ
Functional length
l21
2,82 mm
Number of teeth
Z
5
