Multiple-row thread milling cutters

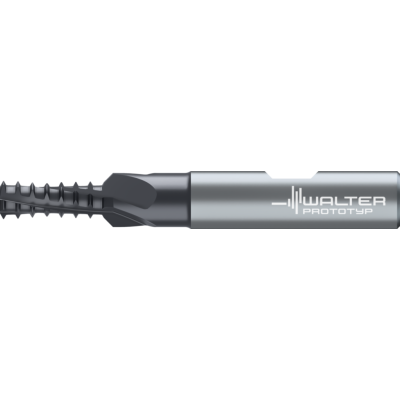

TC620-UNF5/16-WVD-WB10TJ NEW 2025

EAN-code: 4063466501869
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-90-Icon Tr-Profil-UNF-Icon
DeVibe-Icon M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-TC620-15-Icon
Universal multiple-row thread milling cutters For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0% 305,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC620-M-WVD-D-01
Enlarge
Description Symbol Value
Maximum cutting depth
Lc
15,9 mm
Cutting edge diameter
Dc
6,4 mm
Connection diameter
d1
10
Thread size
DN
UNF 5/16-24
Overall length
l1
72 mm
Maximum overhang
l4
32 mm
Tool designation
Designation
TC620-UNF5/16-WVD-WB10TJ
Functional length
l21
2,12 mm
Thread pitch
Gear per inch
24
Number of teeth
Z
4
