Multiple-row thread milling cutters

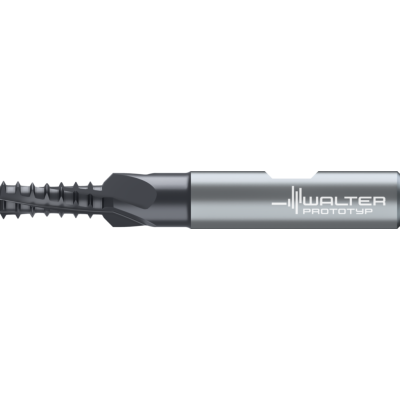

TC620-UNF3/4-WVD-WB10TJ NEW 2025

EAN-code: 4063466501920
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-90-Icon Tr-Profil-UNF-Icon
DeVibe-Icon M-48HRC-Icon Recon-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-TC620-15-Icon
Universal multiple-row thread milling cutters For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0% 672,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC620-M-WVD-D-01
Enlarge
Description Symbol Value
Maximum cutting depth
Lc
38,1 mm
Cutting edge diameter
Dc
16,4 mm
Connection diameter
d1
25
Thread size
DN
UNF 3/4-16
Overall length
l1
135 mm
Maximum overhang
l4
79 mm
Tool designation
Designation
TC620-UNF3/4-WVD-WB10TJ
Functional length
l21
3,17 mm
Thread pitch
Gear per inch
16
Number of teeth
Z
6
