Solid carbide orbital thread mills

TC630-M6-A1F-WB10TJ NEW 2021

EAN-code: 4042446322823
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-M-MF-DIN-Icon
M-48HRC-Icon Tr-3xDN-Icon Tr-Drallw-Fraesen-15-Icon Tr-IKA-Icon
Universal orbital thread milling cutters
P
M
K
N
S
H
O
VAT 0% 198,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

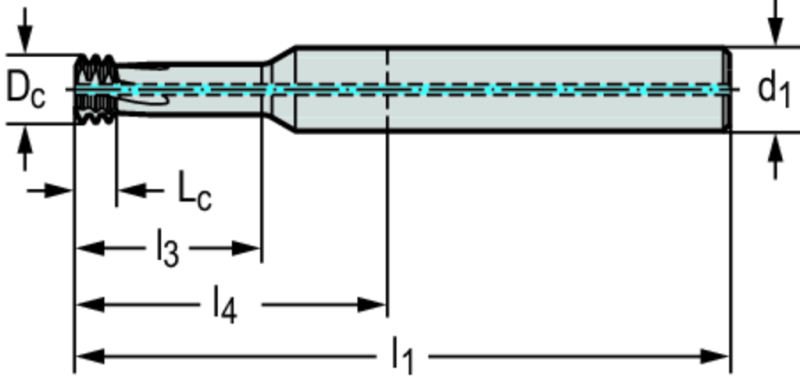

P TR TC630 M A1 D 01
Enlarge
Description Symbol Value
Thread size
DN
M 6
Functional length
l4
22 mm
Cutting edge length
Lc
3 mm
Cutting edge diameter
Dc
4,8 mm
Connection diameter
d1
6 mm
usable length
l3
19,5 mm
Overall length
l1
57 mm
Tool designation
Designation
TC630-M6-A1F-WB10TJ
Thread pitch
P
1 mm
Number of teeth
Z
4
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
