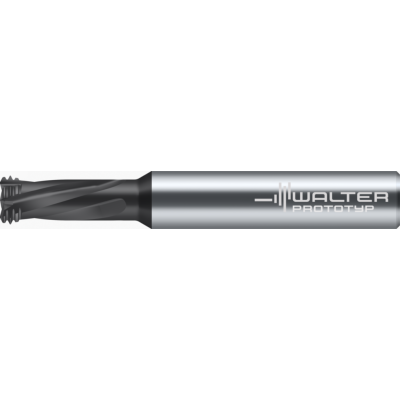

Orbital drill thread milling cutter

TC645-G1/8-A1D-WB10TJ NEW 2023

EAN-code: 4063465185220
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-G-BSP-DIN-Icon
D-Tr-LH-rotation-Icon M-48HRC-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for universal application
P
M
K
N
S
H
O
VAT 0% 275,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC645-M-A1D-D-01
Enlarge
Description Symbol Value
Functional length
l4
24 mm
Number of teeth
Z
4
Cutting edge diameter
Dc
8,05 mm
Tool designation
Designation
TC645-G1/8-A1D-WB10TJ
Overall length
l1
64 mm
usable length
l3
19,456 mm
Thread size
DN
G 1/8-28
Nousu
P
28 "
Non-usable thread depth
Lc2
1,46 mm
