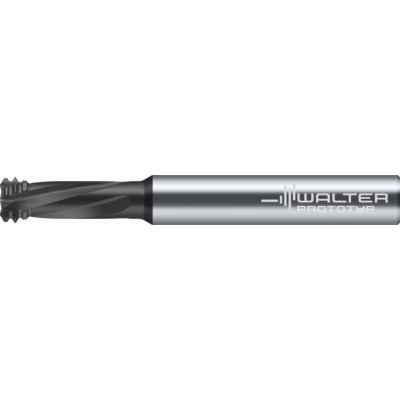

Orbital drill thread milling cutter

TC645-M6X0.75-A1D-WB10TJ NEW 2025

EAN-code: 4063466694073
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-120-Icon Tr-Profil-MF-DIN-Icon
D-Tr-LH-rotation-Icon M-48HRC-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for universal application
P
M
K
N
S
H
O
VAT 0% 250,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC645-M-A1D-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
4,8 mm
Connection diameter
d1
6
Thread size
DN
MF 6x0.75
Usable length
l3
12 mm
Overall length
l1
52 mm
Maximum overhang
l4
16 mm
Tool designation
Designation
TC645-M6X0.75-A1D-WB10TJ
Non-usable thread depth
Lc2
1,23 mm
Thread pitch
P
0,75 mm
Number of teeth
Z
4
