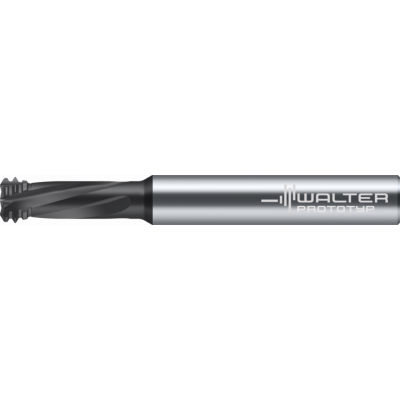

Orbital drill thread milling cutter

TC645-M8X1-A1D-WB10TJ NEW 2025

EAN-code: 4063466694080
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-120-Icon Tr-Profil-MF-DIN-Icon
D-Tr-LH-rotation-Icon M-48HRC-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for universal application
P
M
K
N
S
H
O
VAT 0% 294,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC645-M-A1D-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
6,4 mm
Connection diameter
d1
8
Thread size
DN
MF 8x1
Usable length
l3
16 mm
Overall length
l1
63 mm
Maximum overhang
l4
27 mm
Tool designation
Designation
TC645-M8X1-A1D-WB10TJ
Non-usable thread depth
Lc2
1,63 mm
Thread pitch
P
1 mm
Number of teeth
Z
4
