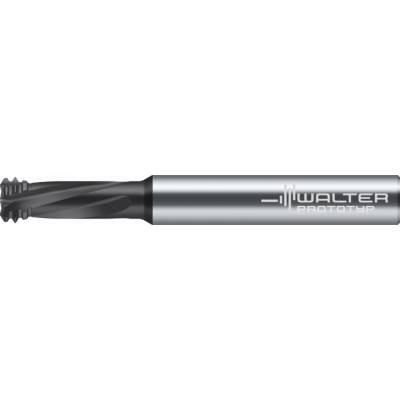

Orbital drill thread milling cutter

TC645-M14X1.5-A1D-WB10TJ NEW 2025

EAN-code: 4063466694745
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-120-Icon Tr-Profil-MF-DIN-Icon
D-Tr-LH-rotation-Icon M-48HRC-Icon Tr-2xDN-Icon Tr-Drallw-Fraesen-20-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for universal application
P
M
K
N
S
H
O
VAT 0% 500,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC645-M-A1D-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10,7 mm
Connection diameter
d1
12
Thread size
DN
MF 14x1.5
Usable length
l3
28 mm
Overall length
l1
83 mm
Maximum overhang
l4
38 mm
Tool designation
Designation
TC645-M14X1.5-A1D-WB10TJ
Non-usable thread depth
Lc2
2,48 mm
Thread pitch
P
1,5 mm
Number of teeth
Z
4
