Products Cutting tools Threading Thread milling Solid carbide drill thread milling cutters UNC-thread With internal cooling TC645-UNC-A1E 4063465116606

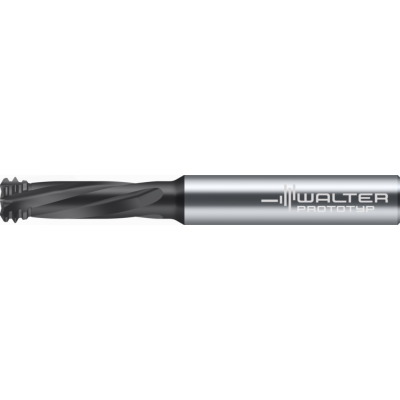

Orbital drill thread milling cutter

TC645-UNC1/4-A1E-WB10TJ NEW 2023

EAN-code: 4063465116606
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-UNC-Icon
D-Tr-LH-rotation-Icon M-48HRC-Icon Tr-2-5xDN-Icon-inch Tr-2-5xDN-Icon Tr-Drallw-Fraesen-20-LH-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for universal application
P
M
K
N
S
H
O
VAT 0% 203,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC645-M-A1E-D-01
Enlarge
Description Symbol Value
Functional length
l4
21 mm
Number of teeth
Z
4
Cutting edge diameter
Dc
4,6 mm
Tool designation
Designation
TC645-UNC1/4-A1E-WB10TJ
Overall length
l1
57 mm
usable length
l3
15,875 mm
Thread size
DN
UNC 1/4-20
Non-usable thread depth
Lc2
2,02 mm
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
